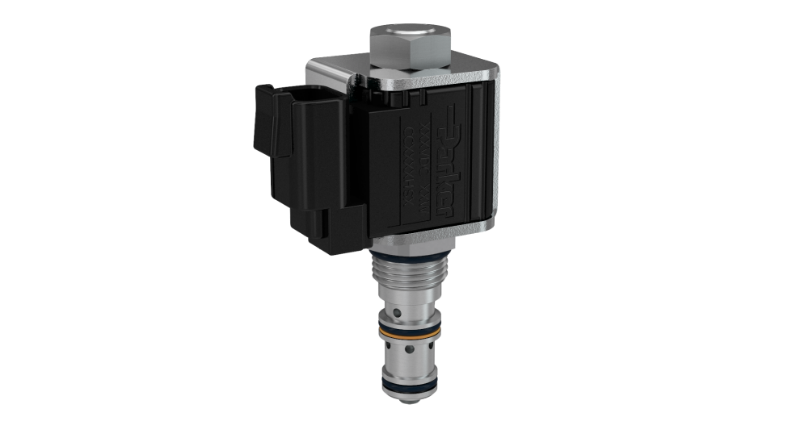

Parker JP02C2000V - 2 Way Flow Control Proportional Valves

REGIONAL - Parker offers an extensive range of 2-way flow control proportional valves using Current Controlled Pulse Width Modulation (PWM) valve drivers with flow capabilities up to 227 lpm (60 gpm) and pressures as high as 210 bar (3000 psi).
AFP Availability:
Partner Available:Quote Required
Brand Parker
Part No. JP02C2000V
$288.50/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEACurrentMax: 1.15 @ 12 VDC, 0.58 @ 24 VDC A
Flow Rate7.5 L/minInstallation Torque20 lb-ft
Seal MaterialFluorocarbonFlow Rate AccuracyUp to 20%
Wire Mesh Screen IncludedNoCoil Nut Tightening Torque4.1 Nm
Actuation TypeElectricalFilter Efficiency RatingISO 4406 18/16/13, SAE Class 4
Connection SizeN/AMaximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Maximum Operating Pressure210 barValve MaterialAll parts steel. All operating parts hardened steel
Weight0.08 kgPower Consumption14 W
FunctionProportional Flow Control/RegulatorMaximum Inlet Pressure Rating210 bar
Frequency100-400 HzFlow DirectionTop to Side (3 - 2)
For Fluid TypeMineral-based or synthetic hydraulic fluidsDivisionHydraulic Cartridge Systems Division
Hysteresis< 10%ConfigurationNormally Closed, Pressure Compensated
Connection TypeN/AVariation of Closing PointN/A
Coil Type1/2" Super Coil Low Watt (CCS)Cavity SizeC08-3
Override FunctionalityN/AMaximum Operating Temperature+400 °F
Minimum Pressure Differential10.3 barLeak Rate570 @ 3000 PSI (210 BAR) cm3/min
Minimum Operating Temperature-26 °CVariation of Opening Point25% of Input Signal
Operation TypeSolenoid operatedMaximum Flow Rate2.0 Gal/min
Operating Temperature-26 to +204 °CBody MaterialN/A
DivisionHydraulic Systems DivisionSeal MaterialFluorocarbon
ConfigurationNormally Closed, Pressure CompensatedActuation TypeElectrical
Flow Rate2 GAL/MIN, 7.5 L/MIN
