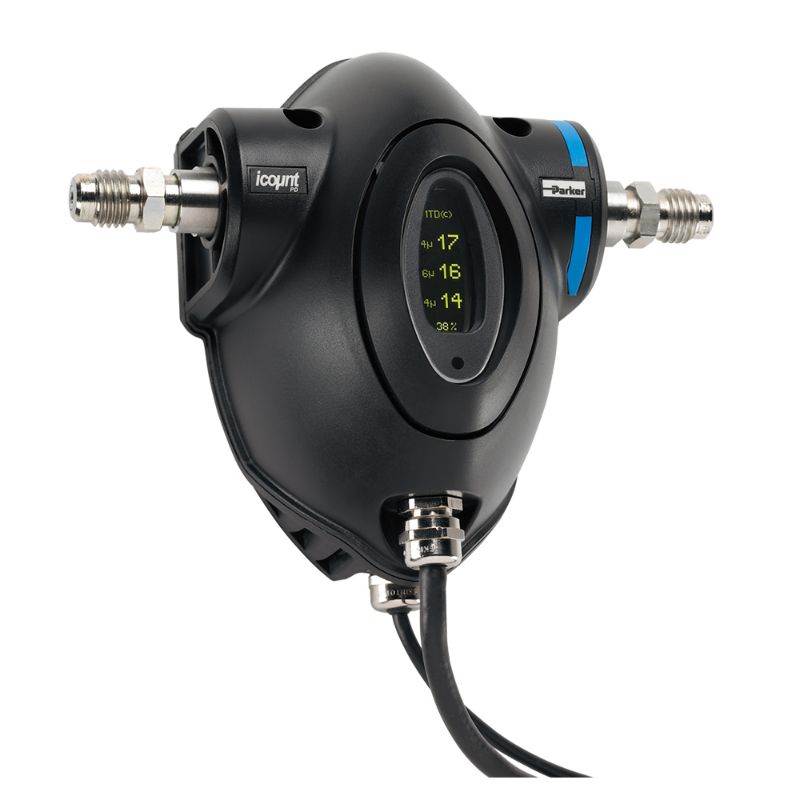

Parker IPD12222110 - Inline Particle Monitor – iCountPD

The Parker iCountPD is a highly compact, permanently mounted laser detection particle size monitor that enables continuous monitoring of contamination levels in hydraulic and fluid circuits.Capable of communicating results in ISO4406 / AS4059 or NAS1638.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. IPD12222110

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	Metric	Brand	Parker
Body Material	Brass	Industry	General Industrial
Division	Hydraulic & Industrial Process Filtration Division EMEA	Division	Hydraulic & Industrial Process Filtration Division EMEA
Technology	Hydraulics	Seal Material	Fluorocarbon
Product Type	Condition Monitor	Specifications Met	CE Certification
Communication Interface	RS232	Maximum Fluid Temperature	80 °C
Weight	1.3 kg	Product Style	Particle Detector/Counter
Sensing Method	Laser	Minimum Fluid Temperature	5 °C
Flow Rate	60 L/min	Operating Temperature	5 to 60 °C
Height	155 mm	Cycle Time	30 second
Ingress Protection Rating	IP66	Accuracy	+/- 1 ISO code
Operating Humidity	5 to 100% (RH)	Width	85 mm
Length	182 mm	Port Size	M16 x 2 hydraulic test points
Signal Output	4 to 20 mA	For Fluid Type	Mineral oils and petroleum based fluids
Operating Pressure	30 to 6000 psi	Electrical Requirements	9 to 40 VDC
Materials of Construction	ABS	Options	n/a
Port Type	Deutsch DT Series	Signal Output	4 to 20 mA
For Fluid Type	Mineral Oil	Indicator Type	LED
Housing Material	ABS	ATEX Specifications Met	n/a
Limit Alarm Relay Included	Yes
