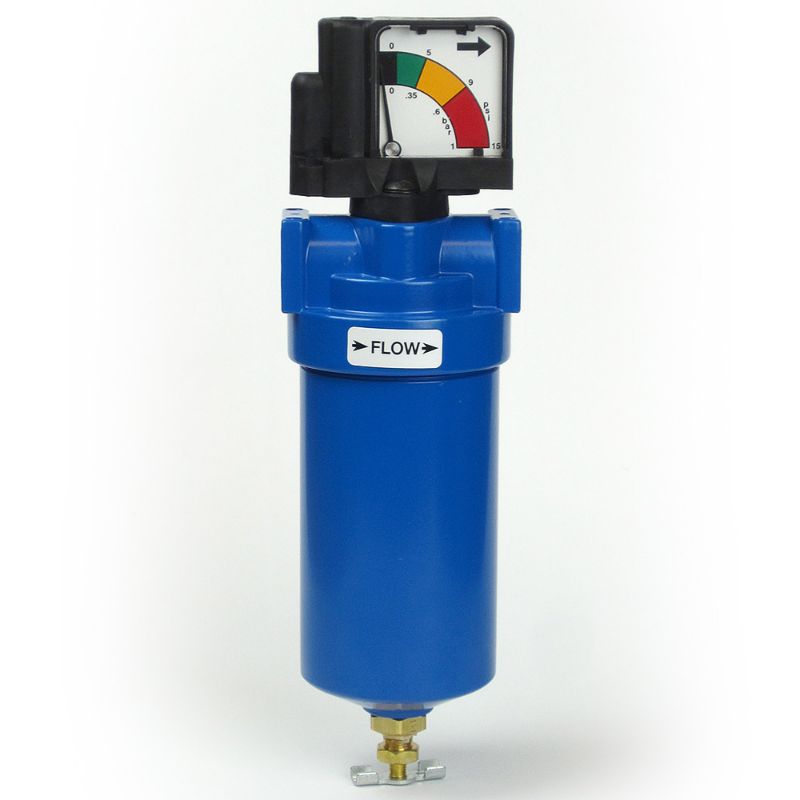

Parker HN0L-100WSG - Finite H-Series Filter Housings

Parker’s Finite filter vessels eliminate oil, water, and particulate contamination from large flows of compressed air and gas.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HN0L-100WSG

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Industrial Gas Filtration and Generation Division	Weight	35 lb
Element Removal Clearance	28.5 inch	Maximum Flow Rate	2261 m3/hour at 7 bar
Brand	Finite	Maximum Operating Temperature	175 °F
Height	915 mm	Width	8 inch
Maximum Flow Rate (cfm)	1330 @ 100 PSIG	Length	Long
Filter Type	Water Separator	Port Connection (inch)	2 1/2
Filter Rating (%)	99+	Replacement Element	100WS35-280 X 1
Thread Type	NPT	Micron Rating (µm)	100
Element Seal Material	Flourocarbon	Pre-Installed Optional Accessories	DPG Gauge

Product resources

Literature and Reference Materials
