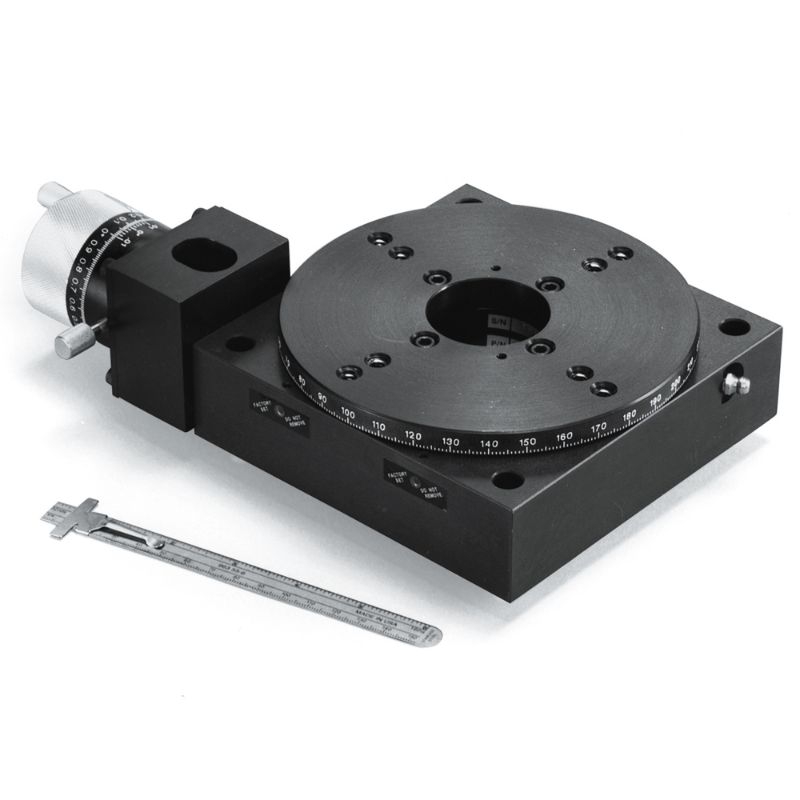

Parker 30005-P - Worm Gear Driven Manual Rotary Stages - 10,20,30000 Series

The 10000/20000/30000-series of of crossed roller bearing guided worm-driven manual rotary stages offer 360 degrees of continuous positioning with a vernier readable to 6 arc minutes. Suitable for payloads of up to 200 lbs

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 30005-P

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Electronic Motion and Controls Division	Maximum Travel Angle	360 °
Product Type	Rotary Stage	Bearing Type	Cross Roller
Number of Axes	1	Mounting Option	English Model
Product Series	10,20,30000 Series	Width	5 inch
Load Capacity	11.3 kg	Drive Train Type	Vernier, 0.12 arc-min
Payload (lbs)	25	Type	English Model / Precision / 5" Dia Top / with 1.0" Aperture
