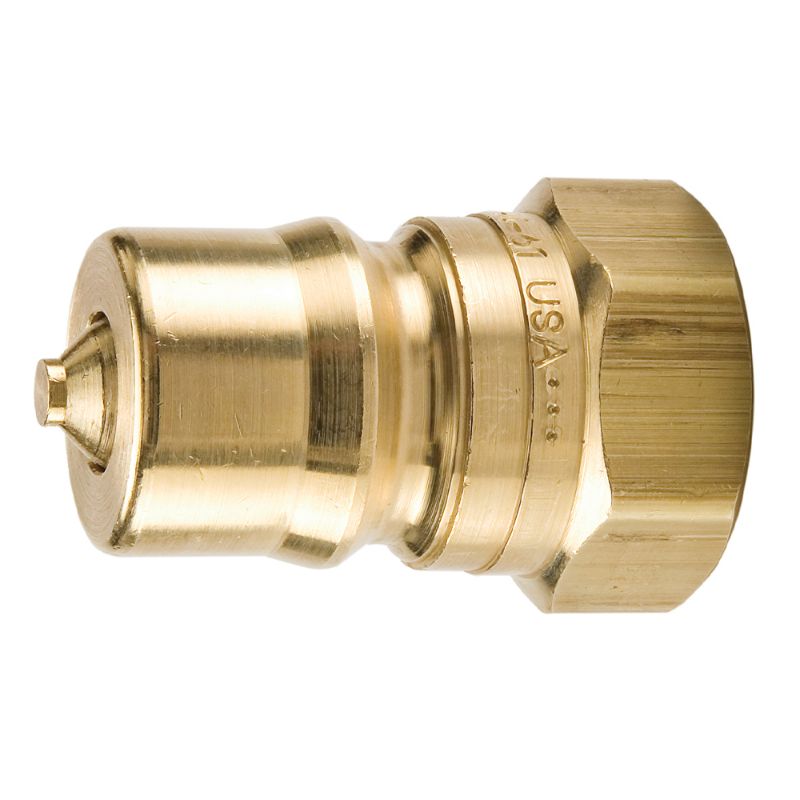

Parker H3-69 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Name: Parker H3-69 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series
SKU: H3-69
Price: 36.35 USD
Availability: InStock

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

AFP Availability:

56 In Stock

Sumter, SC	50
West Knoxville, TN	4
Fayetteville, NC	2

Partner Available:

17 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. H3-69

$36.35/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Dimensional Weight	0.02670863309352518 lb
Vacuum Pressure Rating	-0.9 bar	Valve Type	Poppet
Valve Material	Brass	Maximum Operating Temperature	204 °C
Division	Quick Coupling Division	Plating Type	n/a
Minimum Operating Temperature	-54 °C	Body Material	Steel
Hex Size	0.88 inch	Specifications Met	ISO 7241-1 Series B
Product Type	Manual Connect	Flow Rate	23 L/min
Body Material	BRASS	Coupling Half	Male Nipple
Body Size (inch)	3/8	Connection Thread Size (inch)	3/8 - 18
Seal Material	Ethylene Propylene	Connection Type	Female NPTF
Application	Steam	Maximum Operating Pressure	4000
