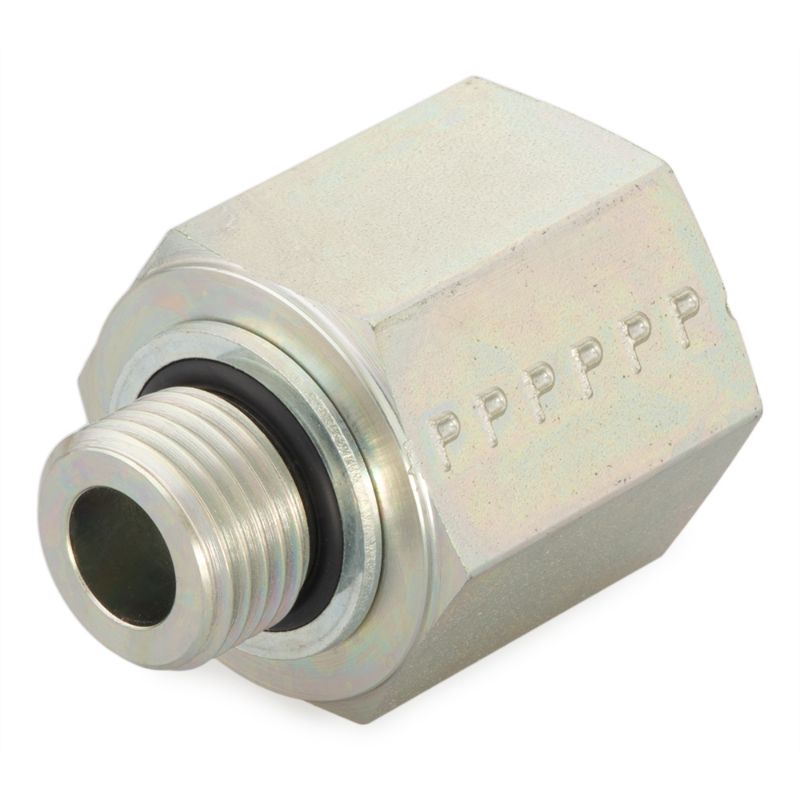

Parker M16-1/2F8OHGS - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Quote Required
Partner Available:	129 In Stock

Brand Parker

Part No. M16-1/2F8OHGS

$23.74

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Fitting Type	Pipe Adapter	Dimensional Weight	0.031160071942446042 lb
Connection 4 Size	na	Maximum Dynamic Pressure	5000 psi
Connection 4 Thread Size	na	Body Material	Steel
Connection 3 Style	na	Connection 2 Style	Female NPT/NPTF
Length (inch)	na	Body Material	Steel
Connection 1 Thread Size (mm)	M16X1.5	Connection Style	Metric O-Ring Retaining Ring to NPTF
O-Ring Material	90 Durometer Nitrile	Connection 1 Style	Male Metric O-Ring Retaining Ring
Connection 2 Thread Size (inch)	1/2-14	Connection 3 Thread Size (inch)	na
Connection 2 Thread Size (mm)	na	Connection 1 Thread Size (inch)	na
Shape	Straight
