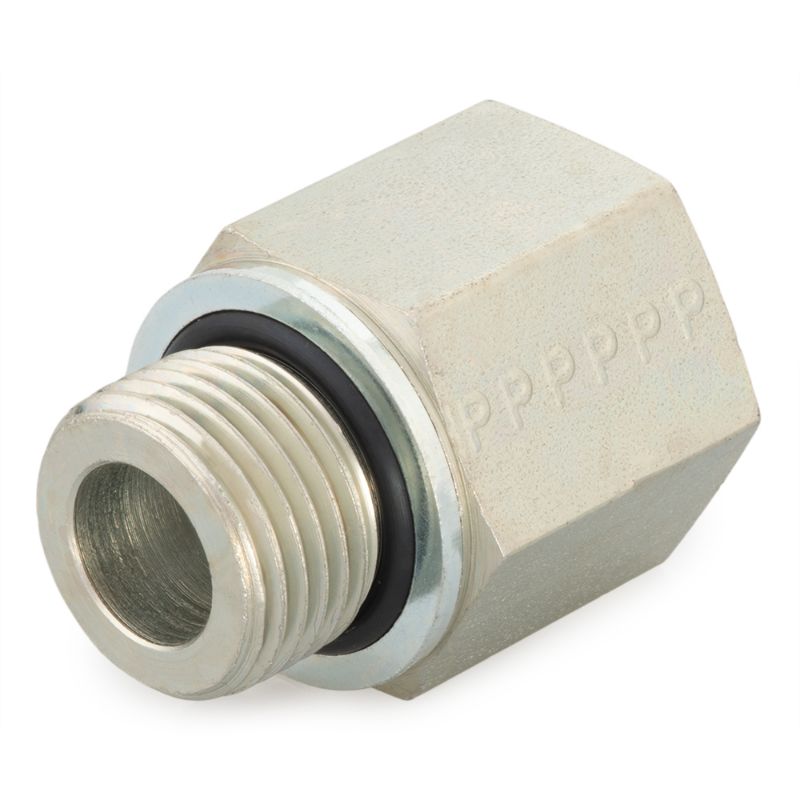

Parker M16-8F8OHG5S - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. M16-8F8OHG5S

$29.64

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 4 Thread Size	na
Maximum Dynamic Pressure	5000 psi	Fitting Type	Pipe Adapter
Dimensional Weight	0.19784172661870503 lb	Division	Tube Fittings Division
Connection 4 Size	na	Body Material	Steel
Connection 2 Style	Female SAE-ORB	Connection 1 Style	Male Metric O-Ring Retaining Ring
Shape	Straight	Connection 1 Thread Size (inch)	na
Length (inch)	na	Connection 2 Thread Size (mm)	na
Connection 2 Thread Size (inch)	3/4-16	O-Ring Material	90 Durometer Nitrile
Connection 3 Style	na	Connection 3 Thread Size (inch)	na
Connection Style	Metric O-Ring Retaining Ring to SAE-ORB	Connection 1 Thread Size (mm)	M16X1.5
Body Material	Steel

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
