*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

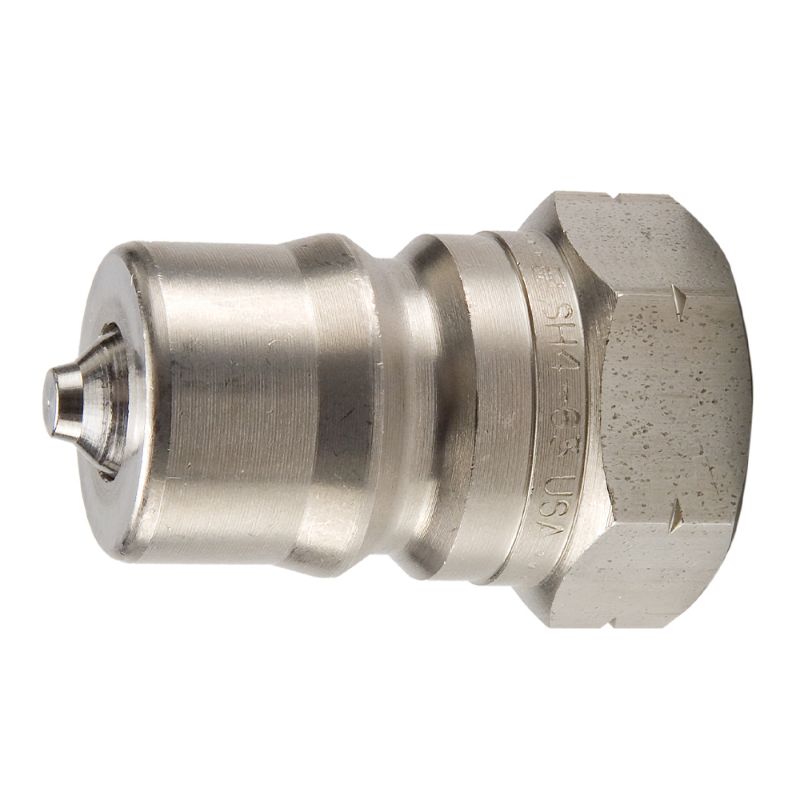

Parker SH1-63 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	6 In Stock

Brand Parker

Part No. SH1-63

$39.90/each

Products specifications

Attribute name	Attribute value
UOM	EA	Dimensional Weight	0.02670863309352518 lb
Division	Quick Coupling Division	Valve Type	Poppet
Vacuum Pressure Rating	-0.9 bar	Hex Size	0.56 inch
Maximum Operating Temperature	250 °F	Product Type	Manual Connect
Minimum Operating Temperature	-40 °F	Plating Type	n/a
Flow Rate	0.8 Gal/min	Body Material	Stainless Steel
Valve Material	Stainless Steel 303	Specifications Met	ISO 7241-1 Series B
Body Size (inch)	1/8	Maximum Operating Pressure	5000
Application	General Purpose	Connection Thread Size (inch)	1/8 - 27
Seal Material	Nitrile	Coupling Half	Male Nipple
Connection Type	Female NPTF	Body Material	303 Stainless Steel

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
