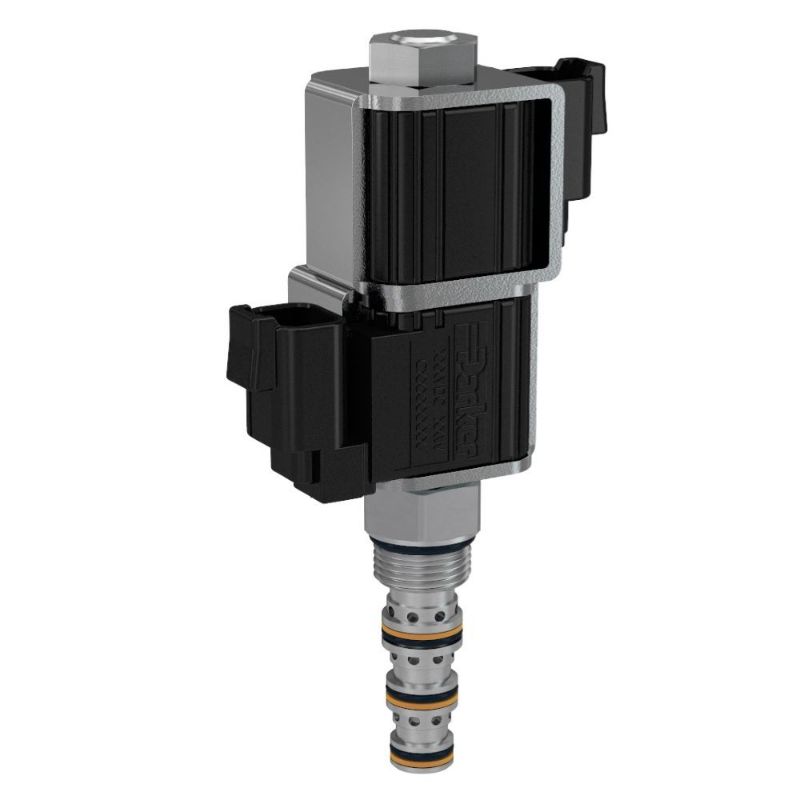

Parker GS025310V - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GS025310V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Body Material	n/a
Maximum Operating Pressure	5000 psi	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15 °F
Weight	0.4 lb	Maximum Inlet Pressure Rating	350 bar
Installation Torque	30 Nm	Coil Nut Tightening Torque	3 lb-ft
Cavity Size	C08-4	Function	4-Way
Maximum Operating Temperature	+400 °F	Actuation Type	Electrical, Manual
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-15 to +400 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Flow Rate	15 L/min
Leak Rate	250 @ 5000 PSI (350 BAR) cm3/min	Configuration	Floating Center
Mounting Type	Screw in cartridge valve	Coil Type	1/2" Super Coil
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	50 ms
Maximum Flow Rate	15 L/min	Maximum Tank Pressure	210 bar
Override Functionality	Non-Detetented	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical, Manual	Flow Rate	4 GAL/MIN, 15 L/MIN
Configuration	Floating Center	Seal Type	Fluorocarbon
