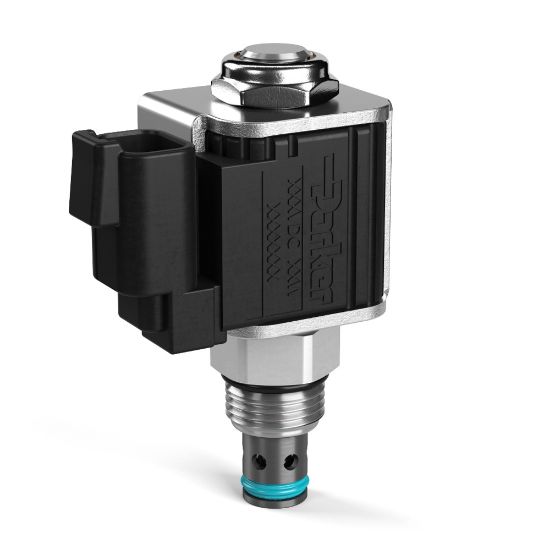

Parker DSL081C - 2 Way Poppet Type Solenoid Valve

Name: Parker DSL081C - 2 Way Poppet Type Solenoid Valve
SKU: DSL081C
Price: 51.75 USD
Availability: InStock

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

AFP Availability:

50 In Stock

North Chesterfield, VA

Partner Available:

26 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. DSL081C

$51.75/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	N/A
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Flow Direction	Side to Nose (2-1)	Maximum Inlet Pressure Rating	250 bar
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Configuration	Normally Closed
Function	2-way	Coil Type	1/2" Super Coil
Cavity Size	C08-2	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Override Functionality	N/A	Maximum Operating Temperature	+93 °C
Maximum Flow Rate	8 Gal/min	Operation Type	Solenoid operated
Leak Rate	5 drops/min	Input Voltage	85% of rated voltage at 72°F (20°C) min
Body Material	N/A	Mounting Type	Screw in cartridge valve
Installation Torque	31-37 Nm	Minimum Operating Temperature	-35 °F
Division	Hydraulic Systems Division	Operating Temperature	-35 to +200 °F
Flow Rate	30 L/min	Wire Mesh Screen Included	No
Actuation Type	Electrical	Seal Material	D-Ring (Standard)
Weight	0.25 lb	Coil Nut Tightening Torque	5-7 lb-ft
Maximum Operating Pressure	3600 psi	Free Reverse Flow	No
Response Time	50 ms	Configuration	Normally Closed
Flow Rate	8 GAL/MIN, 30 L/MIN	Seal Material	D-Ring (Standard)
Actuation Type	Electrical	Wire Mesh Screen Included	No
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
