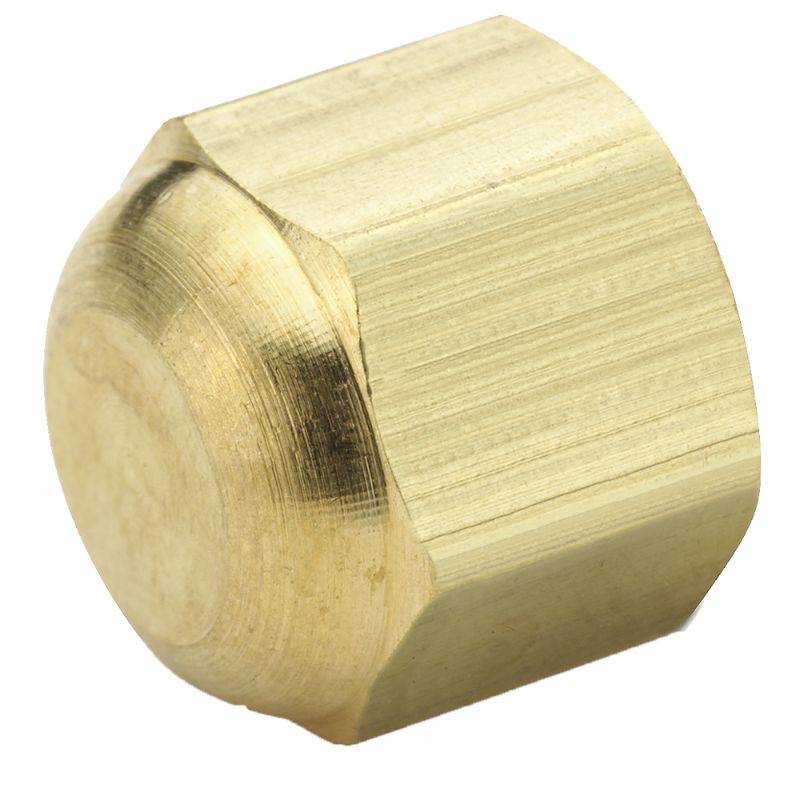

Parker 640F-5 - Brass 45° Flare Fittings

Name: Parker 640F-5 - Brass 45° Flare Fittings
SKU: 640F-5
Price: 3.08 USD
Availability: InStock

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:

9 In Stock

Ashland, VA	4
Jacksonville, FL	4
Summerville, SC	1

Partner Available:

112 In Stock

Brand Parker

Part No. 640F-5

$3.08

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
O-Ring Material	Fluorocarbon	Minimum Operating Temperature	-53 °C
Specifications Met	SAE J512, SAE J513	Maximum Operating Temperature	121 °C
Nut Material	Brass	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Brand	Parker	Maximum Operating Pressure	82.7 bar
Division	Fluid System Connectors Division	Application	Pumps, Gas Grills, Coffee Makers, Adapters
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Body Material	Brass
Technology	Fluid & Gas Handling	Connection 2 Thread Size	NA
Connection 2 Tube Outside Diameter	NA	Product Style	Flare
Connection 1 Type	Flare	Connection 1 Thread Size	1/2-20 inch
Connection 1 Tube Outside Diameter	5/16 inch	Connection 3 Tube Outside Diameter	NA
Connection 3 Type	NA	Shape	Cap
Connection 2 Type	NA	Connection 3 Thread Size	NA
