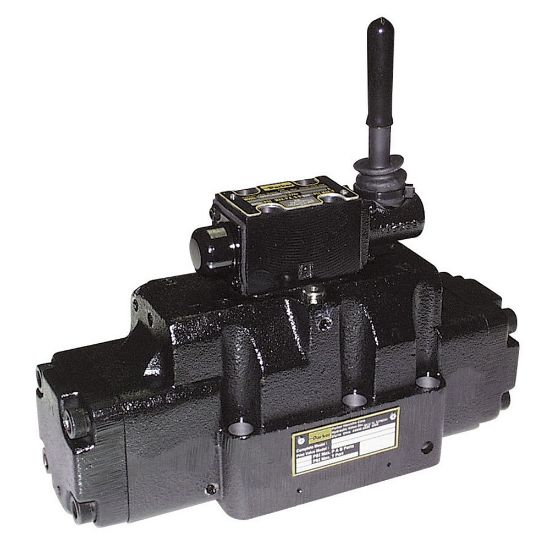

Parker D81VL001C2V - Lever Operated Directional Control Valve - D81VL Series

Parker’s D81VL directional control valves are 5-chamber, lever operated valves

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D81VL001C2V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	5000	Spool Code	4-way, 3 position; All Ports Blocked
Actuation Type	Hydraulic Pressure	Weight	26.7
Body Material	Grey Iron	Maximum Operating Temperature	+140
Size	NFPA D08, CETOP 8, NG25	Mounting Type	Subplate
Pilot Inlet / Drain Locations	Ext. Pilot/Ext Drain	Spool Position	Double Operator, 3 position, spring centered
Division	Hydraulic Valve Systems Division	Valve Type	Lever Operated Directional Control Valve
Options	n/a	Minimum Operating Temperature	-4
Seal Material	Fluorocarbon	Maximum Flow Rate	160

Product resources

Literature and Reference Materials

Lever Operated Directional Control Valve Catalog - D81VL Series (PDF)
