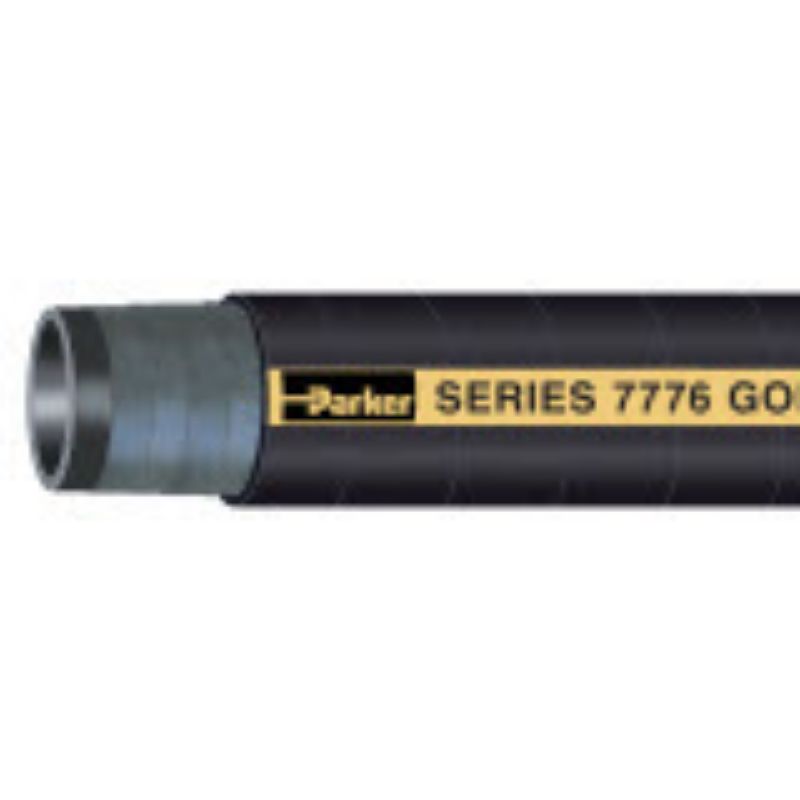

Parker 7776-2500 - GOLD LABEL® Aircraft Fueling Hose, Series 7776

This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7776-2500

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40
Maximum Operating Pressure	300	Package Type	Coil
Cover Color	Black	Maximum Operating Temperature	180
Length per Package	200	Hose Inner Tube Material	Black
Hose Reinforcement Material	4 Plies of Textile	Inside Diameter	2-1/2
Outside Diameter	3.260	Cover Structure	Wrapped
Application	Petroleum Aircraft Fueling	Weight	1.81
Cover Material	Conductive	Media	Fuels (Avgas, Jet Fuel) - Check fuel type with our catalogue chart.
Specifications Met	API 1529, Type E, Grade 2	Minimum Bend Radius	25
Vacuum Pressure Rating	8	Hose I.D. (inch)	2-1/2
Maximum Working Pressure (psi)	300

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
