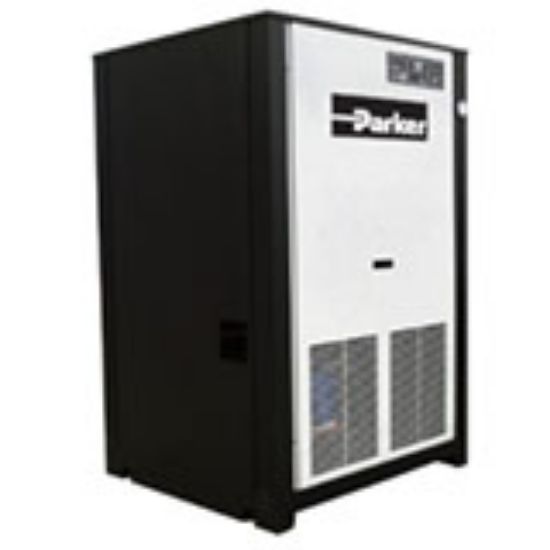

Picture of Parker PTM0200-A2-D2 - Thermal Mass Cycling Refrigerated Compressed Air Dryer - PTM Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker PTM0200-A2-D2 - Thermal Mass Cycling Refrigerated Compressed Air Dryer - PTM Series

Note: This product is no longer available - please refer to the "Product Support" or "Recommended products" section of this page for details on any alternative products, or contact us for further assistance
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. PTM0200-A2-D2
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Inlet Pressure Rating100Compatible PrefilterConsult Factory
ApplicationIndustrialWidth28
Maximum Operating Pressure200Compatible Prefilter ElementConsult Factory
Maximum Flow Rate200Refrigerant TypeR404A
Compatible After Filter ElementConsult FactoryDepth30
Weight446Maximum Ambient Temperature115
Height58Minimum Operating Temperature41
Maximum Operating Temperature140Compatible After FilterConsult Factory
DivisionIndustrial Gas Filtration and Generation DivisionBrandParker
Minimum Ambient Temperature41Product TypeThermal Mass Cycling Refrigerated Compressed Air Dryer, Air Cooled
Minimum Operating Pressure50Maximum Flow Rate (cfm)200
Connection Type2" NPTPre-Installed Optional AccessoriesDryer + Pre & After Filter (shipped loose)
Installed Condensate DrainTimed DrainElectrical Requirements230V/1Ph/60Hz
Pressure Dew Point (F)39
