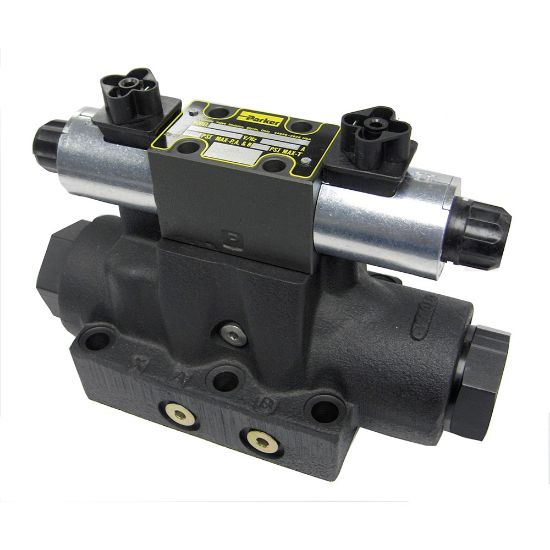

Parker D61VW001B1NJP4 - Pilot Operated Directional Control Valve - D61VW Series

Parker’s D61VW directional control valves are 5-chamber, pilot operated, solenoid controlled valves.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D61VW001B1NJP4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Maximum Operating Temperature	140
Power Supply Voltage	24	Division	Hydraulic Valve Systems Division
Maximum Operating Pressure	3000	Minimum Operating Temperature	-4
Actuation Type	Hydraulic Pressure	Maximum Flow Rate	100
Mounting Type	Subplate	Body Material	Gray Iron
Spool Code	4-Way	Pilot Inlet / Drain Locations	Internal Pilot / External Drain
Valve Type	Pilot Operated Directional Control Valve	Connection Type	DIN with Plug
Coil Specifications Met	CSA	Solenoid Option	Omit - High Watt
Spool Position	Single Solenoid	Options	Omit - No Options
Weight	26.6	Additional Options	Consult catalog for other available features
Mounting Type	Subplate	Size	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot
Maximum Flow Rate	35-100 GPM	Maximum Operating Pressure	3000 psi/205 bar

Product resources

Literature and Reference Materials

Pilot Operated Directional Control Valve Catalog - D61VW Series (PDF)
