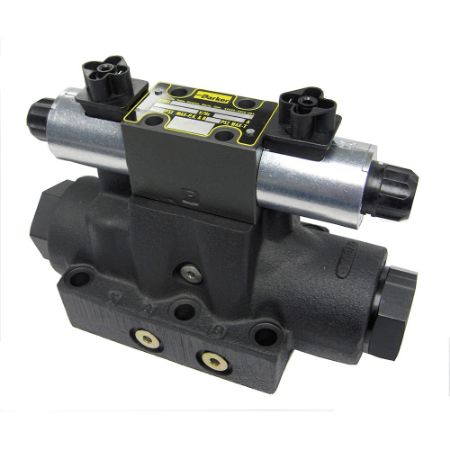

Pilot Operated Directional Control Valve - D61VW Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s D61VW directional control valves are available in 2 or 3-position. They are manifold or subplate mounted valves which conform to NFPA’s D08, CETOP 8 mounting patterns.

Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities

Features/Benefits:
• Explosion proof available
• Low pressure drop design
• Fast response option available
• Hardened spools provide long life
• No tools required for coil removal
• Wide variety of voltages and electrical connections available

Applications:
• Suitable for general hydraulic applications

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Seal Material	Maximum Operating Temperature	Power Supply Voltage	Division	Maximum Operating Pressure	Minimum Operating Temperature	Actuation Type	Maximum Flow Rate	Mounting Type	Body Material	Spool Code	Pilot Inlet / Drain Locations	Valve Type	Connection Type	Coil Specifications Met	Solenoid Option	Spool Position	Options	Weight	Additional Options	Mounting Type	Size	Maximum Flow Rate	Maximum Operating Pressure
D61VW001B1NJC4	Quote Required	Quote Required	TBD		Nitrile	140	24	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Subplate	Gray Iron	4-Way	Internal Pilot / External Drain	Pilot Operated Directional Control Valve	Leadwire Conduit Box	CSA	Omit - High Watt	Single Solenoid	Omit - No Options	26.6	Consult catalog for other available features	Subplate	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	35-100 GPM	3000 psi/205 bar
D61VW001B1NJG56	Quote Required	Quote Required	TBD		Nitrile	140 °F	24 VDC	Hydraulic Valve Systems Division	3000 psi	-4 °F	Hydraulic Pressure	100 Gal/min	Subplate	Gray Iron	4-Way	Internal Pilot / External Drain	Pilot Operated Directional Control Valve	Plug-in Conduit Box	Omit to Standard Valve	Omit - High Watt	Spring Offset	Manaplug (Mini) with Lights	26.6 lb	Consult catalog for additional features.	Subplate	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	35-100 GPM	3000 psi/205 bar
D61VW001B1NJP	Quote Required	Quote Required	TBD		Nitrile	140 °F	24 VDC	Hydraulic Valve Systems Division	3000 psi	-4 °F	Hydraulic Pressure	100 Gal/min	Subplate	Gray Iron	4-Way	Internal Pilot / External Drain	Pilot Operated Directional Control Valve	DIN with Plug	Omit to Standard Valve	Omit - High Watt	2-Position	Omit - No Options	12.1 kg	Consult catalog for other available features	Subplate	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	35-100 GPM	3000 psi/205 bar
D61VW001B1NJP3G	Quote Required	Quote Required	TBD		Nitrile	140 °F	24 VDC	Hydraulic Valve Systems Division	3000 psi	-4 °F	Hydraulic Pressure	100 Gal/min	Subplate	Gray Iron	All Ports Blocked	Internal Pilot / External Drain	Pilot Operated Directional Control Valve	DIN with Plug	Omit to Standard Valve	Omit - High Watt	2-Position	Pilot Choke Meter-out w/ Lights	26.6 lb	Consult catalog for additional features.	Subplate	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	35-100 GPM	3000 psi/205 bar
D61VW001B1NJP4	Quote Required	Quote Required	TBD		Nitrile	140	24	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Subplate	Gray Iron	4-Way	Internal Pilot / External Drain	Pilot Operated Directional Control Valve	DIN with Plug	CSA	Omit - High Watt	Single Solenoid	Omit - No Options	26.6	Consult catalog for other available features	Subplate	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	35-100 GPM	3000 psi/205 bar
D61VW001B1NJP5	Quote Required	Quote Required	TBD		Nitrile	140 °F	24 VDC	Hydraulic Valve Systems Division	3000 psi	-4 °F	Hydraulic Pressure	100 Gal/min	Subplate	Gray Iron	All Ports Blocked	Internal Pilot / External Drain	Pilot Operated Directional Control Valve	DIN with Plug	Omit to Standard Valve	Omit - High Watt	2-Position	Signal Lights	26.6 lb	Consult catalog for other available features	Subplate	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	35-100 GPM	3000 psi/205 bar
D61VW001B1NJPF5	Quote Required	Quote Required	TBD		Nitrile	140	24	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Subplate	Gray Iron	4-Way	Internal Pilot / External Drain	Pilot Operated Directional Control Valve	DIN with Plug	Omit to Standard Valve	Low Watt	Single Solenoid	Signal Lights	26.6	Consult catalog for other available features	Subplate	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	35-100 GPM	3000 psi/205 bar
D61VW001B1NJW	Quote Required	Quote Required	$1,098.75	EA	Nitrile	140 °F	24 VDC	Hydraulic Valve Systems Division	3000 psi	-4 °F	Hydraulic Pressure	100 Gal/min	Subplate	Gray Iron	4-Way	Internal Pilot / External Drain	Pilot Operated Directional Control Valve	DIN w/o Plug	Omit to Standard Valve	Omit - High Watt	P to A and B to T in Offset Position.	Omit - No Options	12.1 kg	Consult catalog for other available features	Subplate	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	35-100 GPM	3000 psi/205 bar
D61VW001B1NJW3A	Quote Required	Quote Required	TBD		Nitrile	140	24	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Subplate	Gray Iron	4-Way	Internal Pilot / External Drain	Pilot Operated Directional Control Valve	DIN w/o Plug	Omit to Standard Valve	Omit - High Watt	Single Solenoid	Pilot Choke Meter-out	26.6	Consult catalog for other available features	Subplate	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	35-100 GPM	3000 psi/205 bar
D61VW001B1NJW4	Quote Required	Quote Required	TBD		Nitrile	140	24	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Subplate	Gray Iron	4-Way	Internal Pilot / External Drain	Pilot Operated Directional Control Valve	DIN w/o Plug	CSA	Omit - High Watt	Single Solenoid	Omit - No Options	26.6	Consult catalog for other available features	Subplate	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	35-100 GPM	3000 psi/205 bar
D61VW001B1NJWL	Quote Required	Quote Required	TBD		Nitrile	140	24	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Subplate	Gray Iron	4-Way	Internal Pilot / External Drain	Pilot Operated Directional Control Valve	DIN w/o Plug	Omit to Standard Valve	10 Watt	Single Solenoid	Omit - No Options	26.6	Consult catalog for other available features	Subplate	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	35-100 GPM	3000 psi/205 bar
D61VW001B1NKC	Quote Required	Quote Required	TBD		Nitrile	140	12 VDC	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Subplate	Gray Iron	4-Way	Internal Pilot / External Drain	Pilot Operated Directional Control Valve	Leadwire Conduit Box	Omit to Standard Valve	Omit - High Watt	Single Solenoid	Omit - No Options	26.6	Consult catalog for other available features	Subplate	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	35-100 GPM	3000 psi/205 bar
D61VW001B1NKCF	Quote Required	Quote Required	TBD		Nitrile	140	12 VDC	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Subplate	Gray Iron	4-Way	Internal Pilot / External Drain	Pilot Operated Directional Control Valve	Leadwire Conduit Box	Omit to Standard Valve	Low Watt	Single Solenoid	Omit - No Options	26.6	Consult catalog for other available features	Subplate	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	35-100 GPM	3000 psi/205 bar
D61VW001B1NKP	Quote Required	Quote Required	TBD		Nitrile	140	12 VDC	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Subplate	Gray Iron	4-Way	Internal Pilot / External Drain	Pilot Operated Directional Control Valve	DIN with Plug	Omit to Standard Valve	Omit - High Watt	Single Solenoid	Omit - No Options	26.6	Consult catalog for other available features	Subplate	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	35-100 GPM	3000 psi/205 bar
D61VW001B1NTCF	Quote Required	Quote Required	TBD		Nitrile	140	220-240V AC 50/60Hz	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Subplate	Gray Iron	4-Way	Internal Pilot / External Drain	Pilot Operated Directional Control Valve	Leadwire Conduit Box	Omit to Standard Valve	Low Watt	P to A and B to T in Offset Position.	Omit - No Options	26.6	Consult catalog for other available features	Subplate	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	35-100 GPM	3000 psi/205 bar
D61VW001B1NTCF3A	Quote Required	Quote Required	TBD		Nitrile	140	220-240V AC 50/60Hz	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Subplate	Gray Iron	4-Way	Internal Pilot / External Drain	Pilot Operated Directional Control Valve	Leadwire Conduit Box	Omit to Standard Valve	Low Watt	Single Solenoid	Pilot Choke Meter-out	26.6	Consult catalog for other available features	Subplate	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	35-100 GPM	3000 psi/205 bar
D61VW001B1NTP3E	Quote Required	Quote Required	TBD		Nitrile	140	220-240V AC 50/60Hz	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Subplate	Gray Iron	4-Way	Internal Pilot / External Drain	Pilot Operated Directional Control Valve	DIN with Plug	Omit to Standard Valve	Omit - High Watt	Single Solenoid	Stroke Adjust A End	26.6	Consult catalog for other available features	Subplate	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	35-100 GPM	3000 psi/205 bar
D61VW001B1NTPF	Quote Required	Quote Required	TBD		Nitrile	140 °F	220-240V AC 50/60Hz	Hydraulic Valve Systems Division	207 bar	-4 °F	Hydraulic Pressure	100 Gal/min	Subplate	Gray Iron	All Ports Blocked	Internal Pilot / External Drain	Pilot Operated Directional Control Valve	DIN with Plug	Omit to Standard Valve	Low Watt	Single Solenoid	Omit - No Options	12.1 kg	Consult catalog for additional features.	Subplate	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	35-100 GPM	3000 psi/205 bar
D61VW001B1NTPF3F	Quote Required	Quote Required	TBD		Nitrile	140	220-240V AC 50/60Hz	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Subplate	Gray Iron	4-Way	Internal Pilot / External Drain	Pilot Operated Directional Control Valve	DIN with Plug	Omit to Standard Valve	Low Watt	Single Solenoid	Stroke Adjust A and B Ends	26.6	Consult catalog for other available features	Subplate	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	35-100 GPM	3000 psi/205 bar
D61VW001B1NTPH	Quote Required	Quote Required	TBD		Nitrile	140	220-240V AC 50/60Hz	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Subplate	Gray Iron	4-Way	Internal Pilot / External Drain	Pilot Operated Directional Control Valve	DIN with Plug	Omit to Standard Valve	Omit - High Watt	Single Solenoid	Omit - No Options	26.6	Consult catalog for other available features	Subplate	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	35-100 GPM	3000 psi/205 bar
