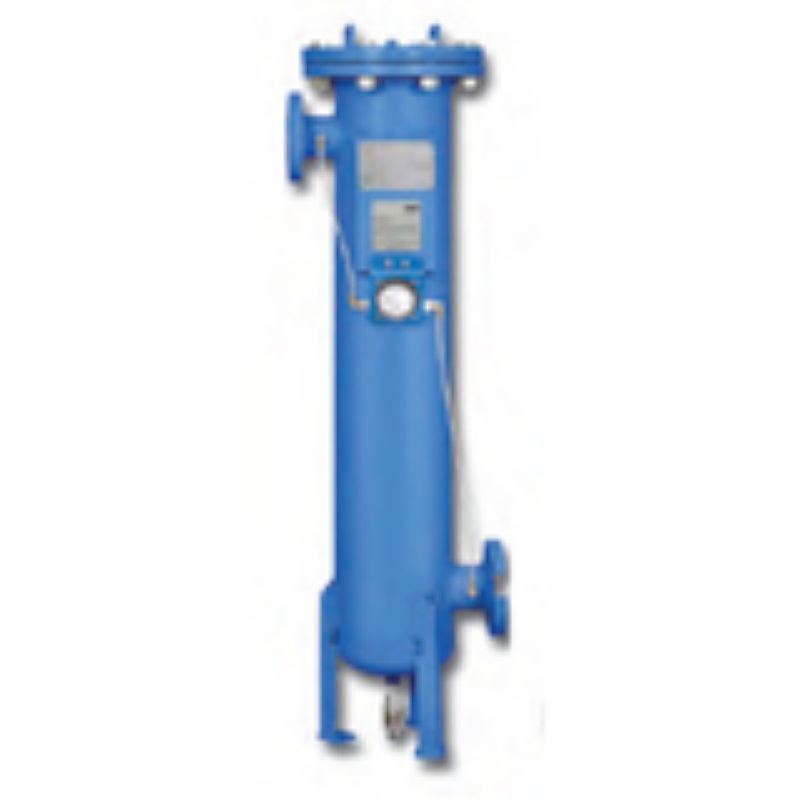

Parker AFF10-0728-HEC - Higher Flow Rate ASME Code Compressed Air Filters 3IN to 10IN Line Size

Parker Balston higher flow rate ASME code stamped compressed air filters offer high efficiency coalescing filtration at very high flow rates.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AFF10-0728-HEC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Balston	Port Type	Flange
Materials of Construction	Body: Carbon Steel, Paint: Epoxy Enamel (Gray), Internals: Epoxy powder painted carbon steel, Seals: Single element vessel-Inorganic flange gasket/ Multi element vessel-Fluorocarbon o-ring, Internal Coating: Epoxy enamel	Mounting Position	Floor Mount
Width	34 inch	Maximum Operating Pressure	17.2 barg
Drain Port Size	1/2 inch	Filter Efficiency Rating	99.97 %
Height	2438.4 mm	Micron Rating	0.01 MICRON
Maximum Operating Temperature	225 °F	Filter Type	Coalescing
Weight	750 lb	Compatible Element	510-28-HEC
Division	Industrial Gas Filtration and Generation Division	Maximum Flow Rate	17839 m3/min
Port Size	10 inch	Maximum Flow Rate (cfm)	10500
Port Connection Type	Flange	Port Connection (inch)	10
Mounting Position	Floor Mount	Filtration Efficiency	99.97%
