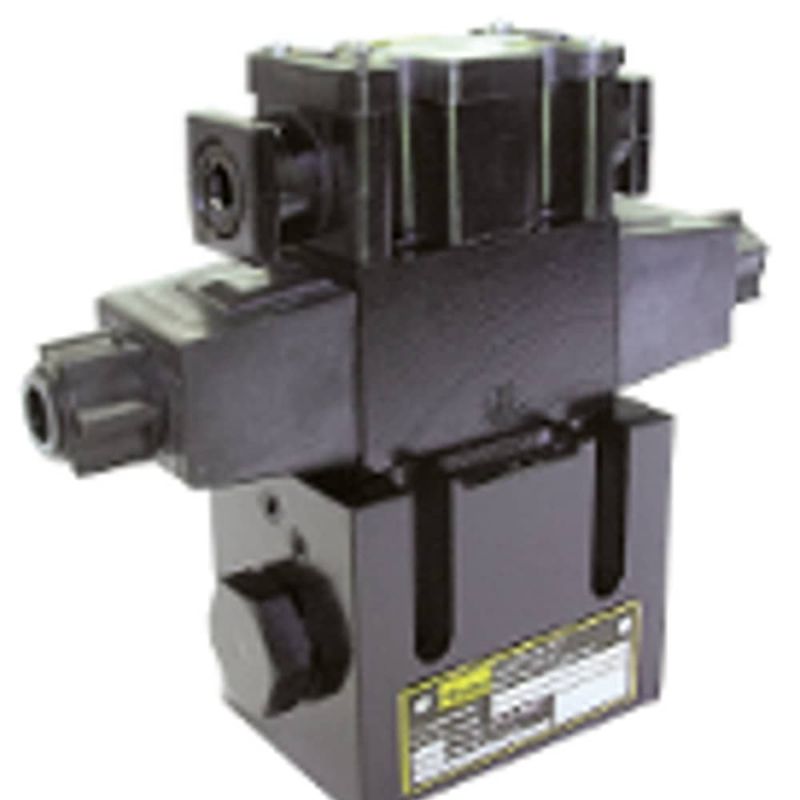

Parker D31VW001C4NYPF - Pilot Operated Directional Control Valve - D31DW, D31VW Series

Parker’s D31 directional control valves are 5-chamber, pilot operated, solenoid controlled valves.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D31VW001C4NYPF

$1,191.75/each

Products specifications

Attribute name	Attribute value
UOM	EA	Options	Omit
Power Supply Voltage	120/60 - 110/50 VAC	Coil Specifications Met	Omit
Body Material	Gray Iron	Mounting Type	Subplate
Maximum Flow Rate	40	Solenoid Option	Low Watt
Pilot Inlet / Drain Locations	Internal Pilot / Internal Drain	Minimum Operating Temperature	-4
Seal Material	Nitrile	Weight	12
Actuation Type	Hydraulic Pressure	Spool Code	4-Way
Maximum Operating Pressure	5000	Additional Options	Consult catalog for additional features.
Valve Type	Pilot Operated Directional Control Valve	Spool Position	3-Position
Maximum Operating Temperature	140	Connection Type	DIN with Plug
Division	Hydraulic Valve Systems Division	Size	NFPA D05H, CETOP 5, D03 Pilot, NFPA Port
Maximum Operating Pressure	5100 psi/ 345 bar	Maximum Flow Rate	30 gal/min
Mounting Type	Subplate
