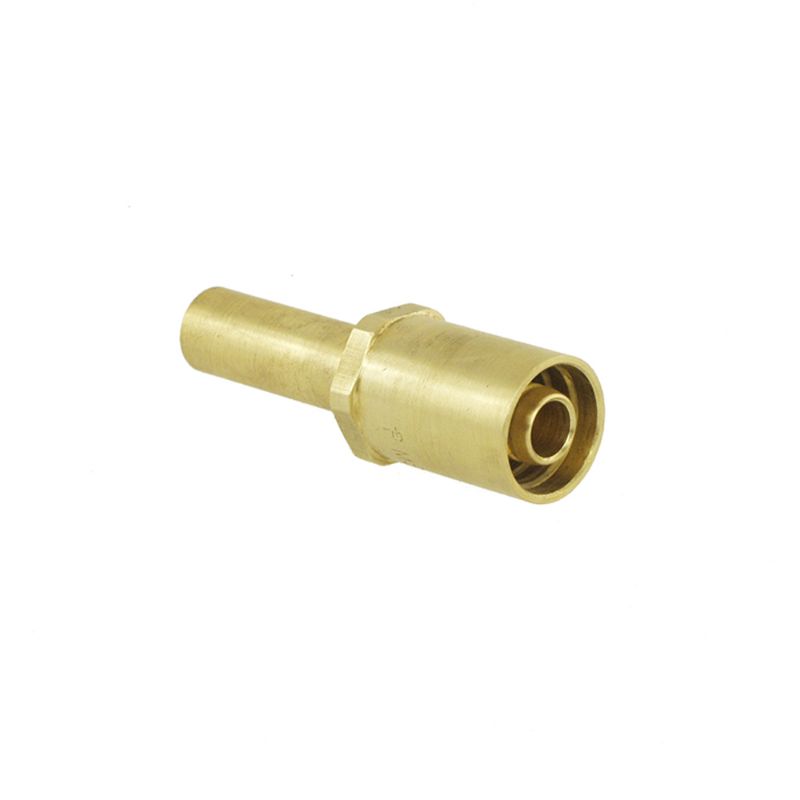

Parker 13491N-10-10 - Permanent Fittings for PTFE Hose - 91/91N

Name: Parker 13491N-10-10 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 13491N-10-10
Price: 39.96 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

AFP Availability:

48 In Stock

North Chesterfield, VA	21
Norfolk, VA	6
Fayetteville, NC	5
Jacksonville, FL	4
Johnson City, TN	4 (Pickup only)
Richmond, VA	2 (Pickup only)
Ashland, VA	2 (Pickup only)
Mooresville, NC	2
Sumter, SC	1
Summerville, SC	1

Partner Available:

38 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 13491N-10-10

$39.96/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Fitting Length	2.96 inch (see drawing legend A)
Connection 2 Size	5/8 inch Thread	Configuration	Hose to Port
Dimensional Weight	0.054 lb	For Fluid Type	Air (Pneumatic Media)
Division	Parflex Division	Coating	Chromium 6 Free-plated
Technology	Fluid & Gas Handling	Connection 2 Type	Straight Tube
Connection Length	58 mm	Connection 1 Size	-10 (Size)
Body Material	Steel (Nut and Shell)	Hex Size	n/a
Division	Parflex Division	Product Type	Hose Fittings
Application	Semiconductor	Shape	Straight
Connection 1 Type	Hose	Specifications Met	n/a
Hex Size 1	n/a	Maximum Operating Pressure	207 bar
Tube Outside Diameter	n/a	Brand	Parker
Industry	Transportation	Product Series	91N
Length (inch)	2.96"	Product Style	Male Standpipe - Rigid - Straight (Inch Size Tube O.D.)
Hose I.D. (inch)	0.625"	Connection 2 Size	5/8"
