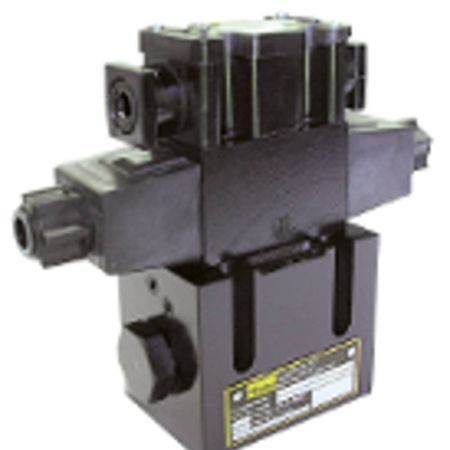

Pilot Operated Directional Control Valve - D31DW, D31VW Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s D31 directional control valves are suitable for manifold or subplate mounting. These valves conform to NFPA’s D05, CETOP 5 and D05HE, CETOP 5H mounting patterns.
Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits:
• Mounting bolts below center line of spool minimizes spool binding
• Five chamber style eliminates pressure spikes in tubes, increasing valve life
• High pressure & flow ratings provide increased performance options in a compact valve
Applications:
• Suitable for general hydraulic applications
Read More...Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits:
• Mounting bolts below center line of spool minimizes spool binding
• Five chamber style eliminates pressure spikes in tubes, increasing valve life
• High pressure & flow ratings provide increased performance options in a compact valve
Applications:
• Suitable for general hydraulic applications
| Action | Part No. | Availability | Partner Available | Price | Seal Material | Weight | Pilot Inlet / Drain Locations | Solenoid Option | Options | Spool Position | Body Material | Division | Connection Type | Maximum Flow Rate | Valve Type | Maximum Operating Temperature | Coil Specifications Met | Mounting Type | Spool Code | Maximum Operating Pressure | Actuation Type | Power Supply Voltage | Minimum Operating Temperature | Additional Options | Maximum Operating Pressure | Size | Maximum Flow Rate | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D31DW001C1NJP3A | Quote Required | TBD | Nitrile | 12 | Internal Pilot / External Drain | High Watt (standard) | Pilot Choke Meter-out | 3-Position | Gray Iron | Hydraulic Valve Systems Division | DIN with Plug | 40 | Pilot Operated Directional Control Valve | 140 | Omit | Subplate | 4-Way | 5000 | Hydraulic Pressure | 24 | -4 | Consult catalog for additional features. | 5712 psi/ 345 bar | NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port | 30 gal/min | Subplate | ||
| D31DW001C1NJP3A. | Quote Required | TBD | Nitrile | 12 | Internal Pilot / External Drain | High Watt (standard) | Pilot Choke Meter-out | 3-Position | Gray Iron | Hydraulic Valve Systems Division | DIN with Plug | 40 | Pilot Operated Directional Control Valve | 140 | Omit | Subplate | 4-Way | 5000 | Hydraulic Pressure | 24 | -4 | Consult catalog for additional features. | 5712 psi/ 345 bar | NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port | 30 gal/min | Subplate | ||
| D31DW001C1NJP3G | Quote Required | TBD | Nitrile | 12 | Internal Pilot / External Drain | High Watt (standard) | Pilot Choke Meter-out w/ Lights | 3-Position | Gray Iron | Hydraulic Valve Systems Division | DIN with Plug | 40 | Pilot Operated Directional Control Valve | 140 | Omit | Subplate | 4-Way | 5000 | Hydraulic Pressure | 24 | -4 | Consult catalog for additional features. | 5713 psi/ 345 bar | NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port | 30 gal/min | Subplate | ||
| D31DW001C1NJP3G. | Quote Required | TBD | Nitrile | 12 | Internal Pilot / External Drain | High Watt (standard) | Pilot Choke Meter-out w/ Lights | 3-Position | Gray Iron | Hydraulic Valve Systems Division | DIN with Plug | 40 | Pilot Operated Directional Control Valve | 140 | Omit | Subplate | 4-Way | 5000 | Hydraulic Pressure | 24 | -4 | Consult catalog for additional features. | 5713 psi/ 345 bar | NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port | 30 gal/min | Subplate | ||
| D31DW001C1NJW | Quote Required | TBD | Nitrile | 12 | Internal Pilot / External Drain | High Watt (standard) | Omit | 3-Position | Gray Iron | Hydraulic Valve Systems Division | DIN w/o Plug | 40 | Pilot Operated Directional Control Valve | 140 | Omit | Subplate | 4-Way | 5000 | Hydraulic Pressure | 24 | -4 | Consult catalog for additional features. | 5714 psi/ 345 bar | NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port | 30 gal/min | Subplate | ||
| D31DW001C1NJW. | Quote Required | TBD | Nitrile | 12 | Internal Pilot / External Drain | High Watt (standard) | Omit | 3-Position | Gray Iron | Hydraulic Valve Systems Division | DIN w/o Plug | 40 | Pilot Operated Directional Control Valve | 140 | Omit | Subplate | 4-Way | 5000 | Hydraulic Pressure | 24 | -4 | Consult catalog for additional features. | 5714 psi/ 345 bar | NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port | 30 gal/min | Subplate | ||
| D31DW001C1NJWTI6N | Quote Required | TBD | Nitrile | 12 | Internal Pilot / External Drain | High Watt (standard) | Monitor Switch A and B Port Start | Double Solenoid | Gray Iron | Hydraulic Valve Systems Division | DIN w/o Plug | 40 | Pilot Operated Directional Control Valve | 140 | Omit | Subplate | 4-Way | 5000 | Hydraulic Pressure | 24 | -4 | Consult catalog for additional features. | 5715 psi/ 345 bar | NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port | 30 gal/min | Subplate | ||
| D31DW001C1NJWTI6N. | Quote Required | TBD | Nitrile | 12 | Internal Pilot / External Drain | High Watt (standard) | Monitor Switch A and B Port Start | Double Solenoid | Gray Iron | Hydraulic Valve Systems Division | DIN w/o Plug | 40 | Pilot Operated Directional Control Valve | 140 | Omit | Subplate | 4-Way | 5000 | Hydraulic Pressure | 24 | -4 | Consult catalog for additional features. | 5715 psi/ 345 bar | NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port | 30 gal/min | Subplate | ||
| D31DW001C1NKP | Quote Required | TBD | Nitrile | 12 | Internal Pilot / External Drain | High Watt (standard) | Omit | 3-Position | Gray Iron | Hydraulic Valve Systems Division | DIN with Plug | 40 | Pilot Operated Directional Control Valve | 140 | Omit | Subplate | 4-Way | 5000 | Hydraulic Pressure | 12 VDC | -4 | Consult catalog for additional features. | 5716 psi/ 345 bar | NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port | 30 gal/min | Subplate | ||
| D31DW001C1NKP. | Quote Required | TBD | Nitrile | 12 | Internal Pilot / External Drain | High Watt (standard) | Omit | 3-Position | Gray Iron | Hydraulic Valve Systems Division | DIN with Plug | 40 | Pilot Operated Directional Control Valve | 140 | Omit | Subplate | 4-Way | 5000 | Hydraulic Pressure | 12 VDC | -4 | Consult catalog for additional features. | 5716 psi/ 345 bar | NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port | 30 gal/min | Subplate | ||
| D31DW001C2NJC3F | Quote Required | TBD | Nitrile | 12 | External Pilot / External Drain | High Watt (standard) | Stroke Adjust A and B Ends | 3-Position | Gray Iron | Hydraulic Valve Systems Division | Leadwire Conduit Box | 40 | Pilot Operated Directional Control Valve | 140 | Omit | Subplate | 4-Way | 5000 | Hydraulic Pressure | 24 | -4 | Consult catalog for additional features. | 5717 psi/ 345 bar | NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port | 30 gal/min | Subplate | ||
| D31DW001C2NJC3F. | Quote Required | TBD | Nitrile | 12 | External Pilot / External Drain | High Watt (standard) | Stroke Adjust A and B Ends | 3-Position | Gray Iron | Hydraulic Valve Systems Division | Leadwire Conduit Box | 40 | Pilot Operated Directional Control Valve | 140 | Omit | Subplate | 4-Way | 5000 | Hydraulic Pressure | 24 | -4 | Consult catalog for additional features. | 5717 psi/ 345 bar | NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port | 30 gal/min | Subplate | ||
| D31DW001C2NJP | Quote Required | TBD | Nitrile | 12 | External Pilot / External Drain | High Watt (standard) | Omit | 3-Position | Gray Iron | Hydraulic Valve Systems Division | DIN with Plug | 40 | Pilot Operated Directional Control Valve | 140 | Omit | Subplate | 4-Way | 5000 | Hydraulic Pressure | 24 | -4 | Consult catalog for additional features. | 5718 psi/ 345 bar | NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port | 30 gal/min | Subplate | ||
| D31DW001C2NJP. | Quote Required | TBD | Nitrile | 12 | External Pilot / External Drain | High Watt (standard) | Omit | 3-Position | Gray Iron | Hydraulic Valve Systems Division | DIN with Plug | 40 | Pilot Operated Directional Control Valve | 140 | Omit | Subplate | 4-Way | 5000 | Hydraulic Pressure | 24 | -4 | Consult catalog for additional features. | 5718 psi/ 345 bar | NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port | 30 gal/min | Subplate | ||
| D31DW001C4NJG56 | Quote Required | TBD | Nitrile | 12 | Internal Pilot / Internal Drain | High Watt (standard) | Manaplug (Mini) with Lights | 3-Position | Gray Iron | Hydraulic Valve Systems Division | Plug-in Conduit Box | 40 | Pilot Operated Directional Control Valve | 140 | Omit | Subplate | 4-Way | 5000 | Hydraulic Pressure | 24 | -4 | Consult catalog for additional features. | 5719 psi/ 345 bar | NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port | 30 gal/min | Subplate | ||
| D31DW001C4NJG56. | Quote Required | TBD | Nitrile | 12 | Internal Pilot / Internal Drain | High Watt (standard) | Manaplug (Mini) with Lights | 3-Position | Gray Iron | Hydraulic Valve Systems Division | Plug-in Conduit Box | 40 | Pilot Operated Directional Control Valve | 140 | Omit | Subplate | 4-Way | 5000 | Hydraulic Pressure | 24 | -4 | Consult catalog for additional features. | 5719 psi/ 345 bar | NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port | 30 gal/min | Subplate | ||
| D31DW001C4NJP | Quote Required | TBD | Nitrile | 12 | Internal Pilot / Internal Drain | High Watt (standard) | Omit | 3-Position | Gray Iron | Hydraulic Valve Systems Division | DIN with Plug | 40 | Pilot Operated Directional Control Valve | 140 | Omit | Subplate | 4-Way | 5000 | Hydraulic Pressure | 24 | -4 | Consult catalog for additional features. | 5720 psi/ 345 bar | NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port | 30 gal/min | Subplate | ||
| D31DW001C4NJP. | Quote Required | TBD | Nitrile | 12 | Internal Pilot / Internal Drain | High Watt (standard) | Omit | 3-Position | Gray Iron | Hydraulic Valve Systems Division | DIN with Plug | 40 | Pilot Operated Directional Control Valve | 140 | Omit | Subplate | 4-Way | 5000 | Hydraulic Pressure | 24 | -4 | Consult catalog for additional features. | 5720 psi/ 345 bar | NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port | 30 gal/min | Subplate | ||
| D31DW001C4NJP3F | Quote Required | TBD | Nitrile | 12 | Internal Pilot / Internal Drain | High Watt (standard) | Stroke Adjust A and B Ends | 3-Position | Gray Iron | Hydraulic Valve Systems Division | DIN with Plug | 40 | Pilot Operated Directional Control Valve | 140 | Omit | Subplate | 4-Way | 5000 | Hydraulic Pressure | 24 | -4 | Consult catalog for additional features. | 5721 psi/ 345 bar | NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port | 30 gal/min | Subplate | ||
| D31DW001C4NJP3F. | Quote Required | TBD | Nitrile | 12 | Internal Pilot / Internal Drain | High Watt (standard) | Stroke Adjust A and B Ends | 3-Position | Gray Iron | Hydraulic Valve Systems Division | DIN with Plug | 40 | Pilot Operated Directional Control Valve | 140 | Omit | Subplate | 4-Way | 5000 | Hydraulic Pressure | 24 | -4 | Consult catalog for additional features. | 5721 psi/ 345 bar | NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port | 30 gal/min | Subplate |
