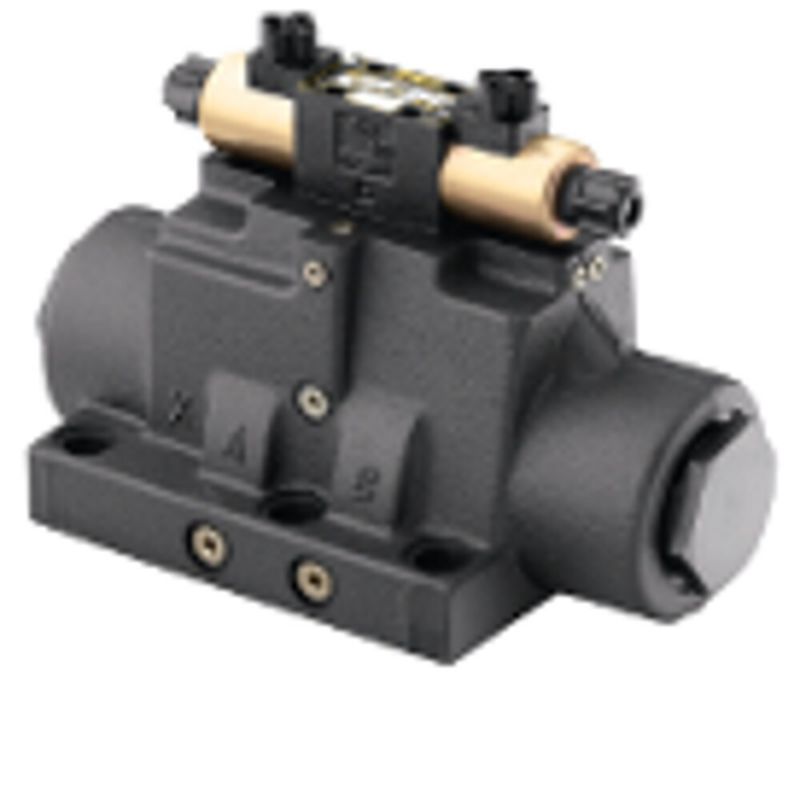

Picture of Parker D31DW011C4NJGL 56. - Pilot Operated Directional Control Valve - D31DW, D31VW Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker D31DW011C4NJGL 56. - Pilot Operated Directional Control Valve - D31DW, D31VW Series

Parker’s D31 directional control valves are 5-chamber, pilot operated, solenoid controlled valves.
AFP Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. D31DW011C4NJGL 56.
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Solenoid OptionHigh Watt (standard)Spool Position3-Position
DivisionHydraulic Valve Systems DivisionBody MaterialGray Iron
Connection TypePlug-in Conduit BoxMounting TypeSubplate
Valve TypePilot Operated Directional Control ValveCoil Specifications MetOmit
OptionsManaplug (Mini) with LightsSpool Code4-Way
Maximum Operating Pressure5000Maximum Operating Temperature140
Pilot Inlet / Drain LocationsInternal Pilot / Internal DrainActuation TypeHydraulic Pressure
Power Supply Voltage24Additional OptionsConsult catalog for additional features.
Maximum Flow Rate30Seal MaterialNitrile
Weight12Minimum Operating Temperature-4
SizeNFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO PortMaximum Operating Pressure5761 psi/ 345 bar
Maximum Flow Rate30 gal/minMounting TypeSubplate
