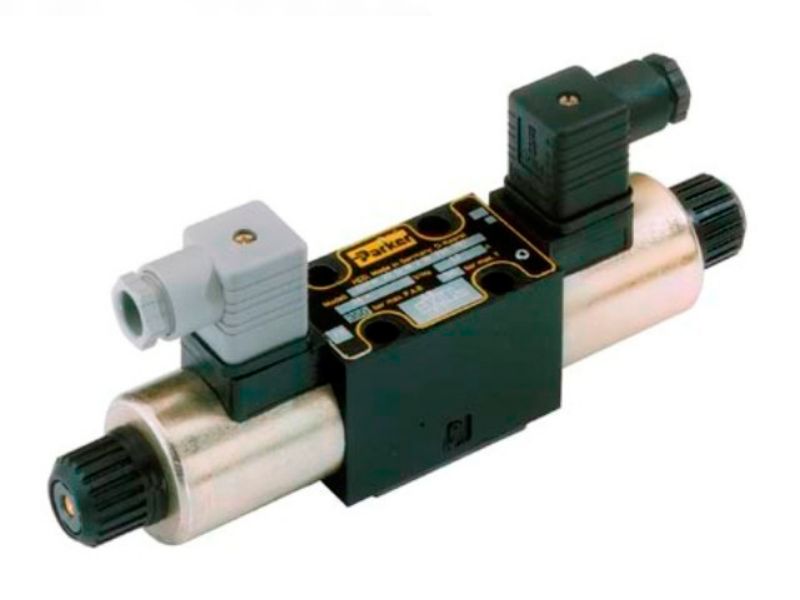

Parker D1VW001CNYCF - D1VW Series - Double solenoid, 3 position, spring centered

Name: Parker D1VW001CNYCF - D1VW Series - Double solenoid, 3 position, spring centered
SKU: D1VW001CNYCF
Price: 544.50 USD
Availability: InStock

D1VW Series - Double solenoid, 3 position, spring centered - NFPA D03 (CETOP 3, NG 6)

AFP Availability:

11 In Stock

North Chesterfield, VA	7
Jacksonville, FL	2
Grovetown, GA	2

Partner Available:

21 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. D1VW001CNYCF

$544.50/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Parker Valve Style Code	C
Pkg Qty	1	Max Flow (at 3000 PSI)	14 GPM (54 LPM)
Seals	Buna-N (Nitrile)	Spool Type	Closed Center - All Ports Blocked
Solenoid Connection	Conduit	Coil Option	Low Watt
Solenoid Voltage	120/60 - 110/50 VAC	UOM	EA
Parker Spool Code	1	Parker Group	Hydraulic
Parker Division	Hydraulic Valve	Operator Type	Solenoid
Series	D1VW	Max Pressure	5000 PSI (345 Bar)
Seals	Buna-N (Nitrile)	Solenoid Connection	Conduit
Solenoid Voltage	120/60 - 110/50 VAC	Parker Spool Code	1
Parker Valve Style Code	C	Spool Type	Closed Center - All Ports Blocked
Valve Style	Double solenoid, 3 position, spring centered	Subplate Pattern	NFPA D03 (CETOP 3, NG 6)
Max Flow (at 3000 PSI)	14 GPM (54 LPM)	Coil Option	Low Watt

Product resources

Solenoid Valves (PDF)
