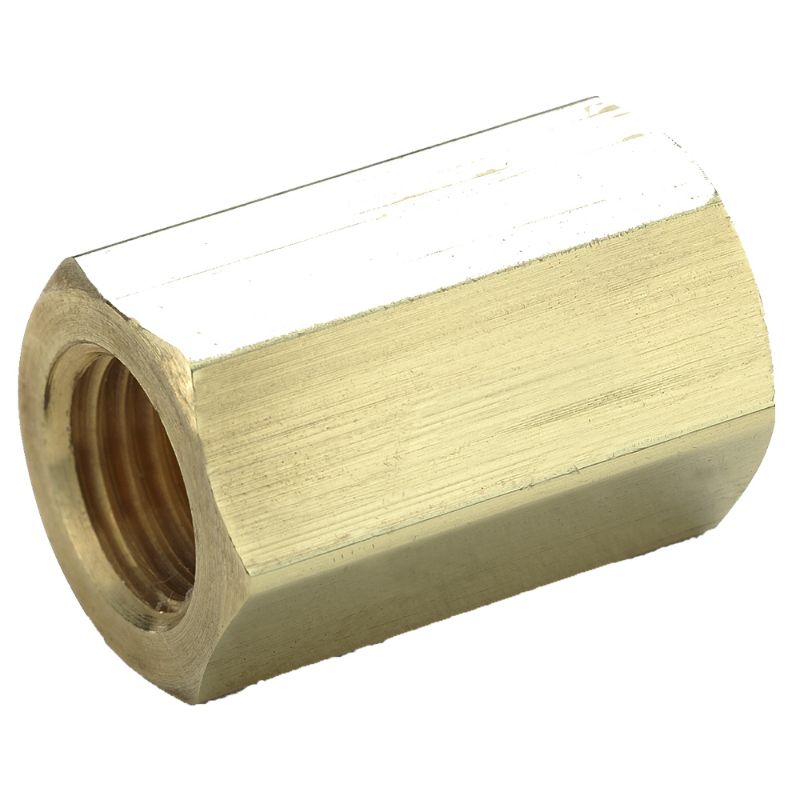

Parker 660FHD-10 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

AFP Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. 660FHD-10

$27.66/each

Products specifications

Attribute name	Attribute value
UOM	EA	Technology	Fluid & Gas Handling
O-Ring Material	Fluorocarbon	Maximum Operating Temperature	250 °F
Division	Fluid System Connectors Division	Body Material	Brass
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Nut Material	Brass
Specifications Met	SAE J512, SAE J513	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Minimum Operating Temperature	-65 °F
Division	Fluid System Connectors Division	Maximum Operating Pressure	2800 psi
Brand	Parker	Connection 1 Type	Flare
Connection 2 Type	Flare	Connection 1 Thread Size	7/8-14 inch
Connection 2 Thread Size	7/8-14 inch	Connection 1 Tube Outside Diameter	5/8 inch
Connection 2 Tube Outside Diameter	5/8 inch	Connection 3 Tube Outside Diameter	NA
Connection 3 Type	NA	Connection 3 Thread Size	NA
Shape	Union	Product Style	Female Flare to Female Flare
