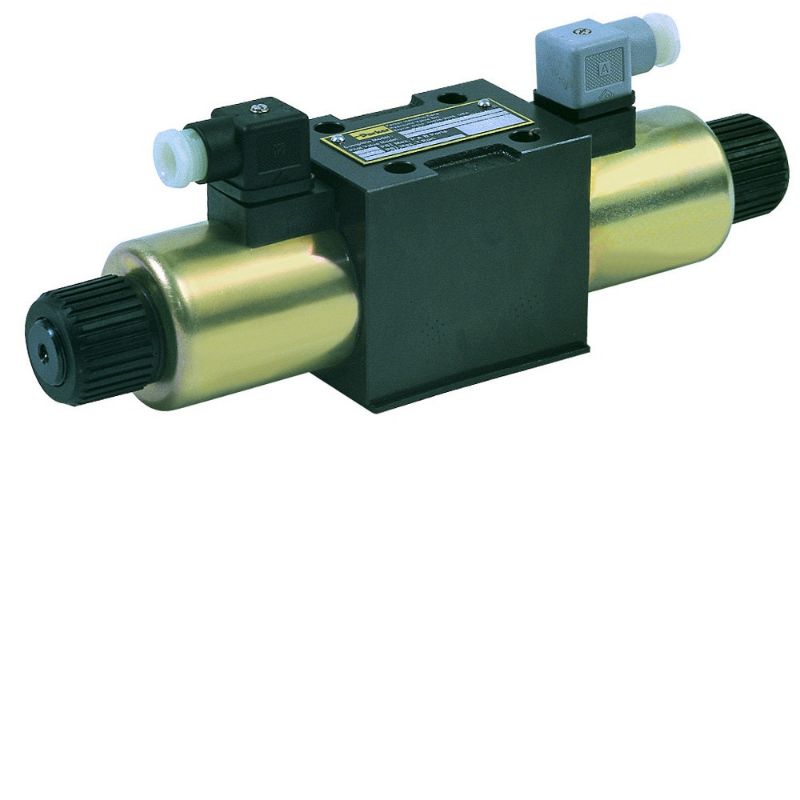

Parker D1FWE02FCNJW0 - OBSOLETE: Proportional Directional Control Valve - D1FW/D3FW Series

This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D1FWE02FCNJW0

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	32
Actuation Type	Hydraulic Pressure	Input Voltage	24.0
Maximum Operating Temperature	140	Seal Material	Nitrile
Maximum Operating Pressure	4500	Additional Options	Consult catalog for additional features.
Body Material	Gray Iron	Division	Hydraulic Valve Systems Division
Spool Type	10% Overlap	Weight	5.5
Valve Type	Direct Operated Proportional Directional Control Valve	Maximum Flow Rate	12.5
Solenoid Option	DIN 43650 w/o Plug	Spool Position	4-Way
Flow Rate (gpm)	4	Size	NG 6, CETOP 3
Mounting Type	Manifold	Maximum Operating Pressure	4500 PSI

Product resources

Literature and Reference Materials

Proportional Directional Control Valve Catalog - D1FW/D3FW (North America) (PDF)
