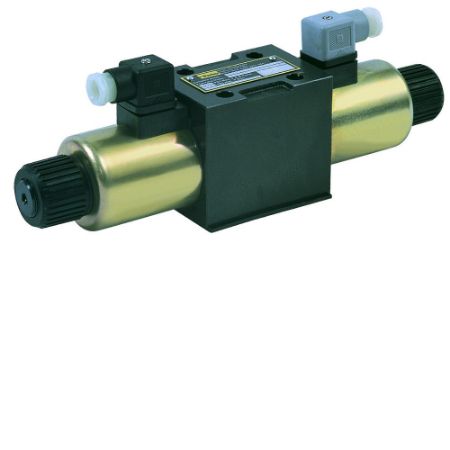

OBSOLETE: Proportional Directional Control Valve - D1FW/D3FW Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s D*FW direct operated, proportional, directional control solenoid applications include reproducible control of actuator speed in rapid/slow speed profiling, and smooth acceleration and deceleration performance.
Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Packaging Machinery
• Primary Metal Refining/Process
• Vehicle Assembly Facilities
Features/Benefits:
• Spring centered spool
• Standard DIN/ISO/CETOP/NFPA interfaces
• Wide selection of spool options and flow capacity
• Progressive flow characteristics for improved low flow resolution
Applications:
• Suitable for general hydraulic applications
Read More...Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Packaging Machinery
• Primary Metal Refining/Process
• Vehicle Assembly Facilities
Features/Benefits:
• Spring centered spool
• Standard DIN/ISO/CETOP/NFPA interfaces
• Wide selection of spool options and flow capacity
• Progressive flow characteristics for improved low flow resolution
Applications:
• Suitable for general hydraulic applications
| Action | Part No. | Availability | Partner Available | Price | Input Voltage | Seal Material | Maximum Operating Temperature | Division | Maximum Operating Pressure | Actuation Type | Weight | Minimum Operating Temperature | Body Material | Additional Options | Valve Type | Maximum Flow Rate | Spool Type | Spool Position | Solenoid Option | Flow Rate (gpm) | Mounting Type | Size | Maximum Operating Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D1FWE01CCNJP0 | Quote Required | TBD | 24.0 | Nitrile | 140 | Hydraulic Valve Systems Division | 4500 | Hydraulic Pressure | 5.5 | 32 | Gray Iron | Consult catalog for additional features. | Direct Operated Proportional Directional Control Valve | 12.5 | 10% Overlap | 4-Way | DIN with Plug | 2 | Manifold | NG 6, CETOP 3 | 4500 PSI | ||
| D1FWE01CCNJW0 | Quote Required | TBD | 24.0 | Nitrile | 140 | Hydraulic Valve Systems Division | 4500 | Hydraulic Pressure | 5.5 | 32 | Gray Iron | Consult catalog for additional features. | Direct Operated Proportional Directional Control Valve | 12.5 | 10% Overlap | 4-Way | DIN 43650 w/o Plug | 2 | Manifold | NG 6, CETOP 3 | 4500 PSI | ||
| D1FWE01CCNKP0 | Quote Required | TBD | 12.0 | Nitrile | 140 | Hydraulic Valve Systems Division | 4500 | Hydraulic Pressure | 5.5 | 32 | Gray Iron | Consult catalog for additional features. | Direct Operated Proportional Directional Control Valve | 12.5 | 10% Overlap | 4-Way | DIN with Plug | 2 | Manifold | NG 6, CETOP 3 | 4500 PSI | ||
| D1FWE01CCNKW0 | Quote Required | TBD | 12.0 | Nitrile | 140 | Hydraulic Valve Systems Division | 4500 | Hydraulic Pressure | 5.5 | 32 | Gray Iron | Consult catalog for additional features. | Direct Operated Proportional Directional Control Valve | 12.5 | 10% Overlap | 4-Way | DIN 43650 w/o Plug | 2 | Manifold | NG 6, CETOP 3 | 4500 PSI | ||
| D1FWE01CCNMP0 | Quote Required | TBD | 9.0 | Nitrile | 140 | Hydraulic Valve Systems Division | 4500 | Hydraulic Pressure | 5.5 | 32 | Gray Iron | Consult catalog for additional features. | Direct Operated Proportional Directional Control Valve | 12.5 | 10% Overlap | 4-Way | DIN with Plug | 2 | Manifold | NG 6, CETOP 3 | 4500 PSI | ||
| D1FWE01CCNMW0 | Quote Required | TBD | 9.0 | Nitrile | 140 | Hydraulic Valve Systems Division | 4500 | Hydraulic Pressure | 5.5 | 32 | Gray Iron | Consult catalog for additional features. | Direct Operated Proportional Directional Control Valve | 12.5 | 10% Overlap | 4-Way | DIN 43650 w/o Plug | 2 | Manifold | NG 6, CETOP 3 | 4500 PSI | ||
| D1FWE01CCVJW0 | Quote Required | TBD | 24.0 | Fluorocarbon | 140 | Hydraulic Valve Systems Division | 4500 | Hydraulic Pressure | 5.5 | 32 | Gray Iron | Consult catalog for additional features. | Direct Operated Proportional Directional Control Valve | 12.5 | 10% Overlap | 4-Way | DIN 43650 w/o Plug | 2 | Manifold | NG 6, CETOP 3 | 4500 PSI | ||
| D1FWE01CENJW0 | Quote Required | TBD | 24.0 | Nitrile | 140 | Hydraulic Valve Systems Division | 4500 | Hydraulic Pressure | 5.5 | 32 | Gray Iron | Consult catalog for additional features. | Direct Operated Proportional Directional Control Valve | 12.5 | 10% Overlap | 4-Way | DIN 43650 w/o Plug | 2 | Manifold | NG 6, CETOP 3 | 4500 PSI | ||
| D1FWE01CENLET | Quote Required | TBD | 6.0 | Nitrile | 140 | Hydraulic Valve Systems Division | 4500 | Hydraulic Pressure | 5.5 | 32 | Gray Iron | Consult catalog for additional features. | Direct Operated Proportional Directional Control Valve | 12.5 | 10% Overlap | 4-Way | Explosion Proof | 2 | Manifold | NG 10, CETOP 5 | 4500 PSI | ||
| D1FWE01CEVKW0 | Quote Required | TBD | 12.0 | Fluorocarbon | 140 | Hydraulic Valve Systems Division | 4500 | Hydraulic Pressure | 5.5 | 32 | Gray Iron | Consult catalog for additional features. | Direct Operated Proportional Directional Control Valve | 12.5 | 10% Overlap | 4-Way | DIN 43650 w/o Plug | 2 | Manifold | NG 6, CETOP 3 | 4500 PSI | ||
| D1FWE01CKVKW0 | Quote Required | TBD | 12.0 | Fluorocarbon | 140 | Hydraulic Valve Systems Division | 4500 | Hydraulic Pressure | 5.5 | 32 | Gray Iron | Consult catalog for additional features. | Direct Operated Proportional Directional Control Valve | 12.5 | 10% Overlap | 4-Way | DIN 43650 w/o Plug | 2 | Manifold | NG 6, CETOP 3 | 4500 PSI | ||
| D1FWE01FCNJP0 | Quote Required | TBD | 24.0 | Nitrile | 140 | Hydraulic Valve Systems Division | 4500 | Hydraulic Pressure | 5.5 | 32 | Gray Iron | Consult catalog for additional features. | Direct Operated Proportional Directional Control Valve | 12.5 | 10% Overlap | 4-Way | DIN with Plug | 4 | Manifold | NG 6, CETOP 3 | 4500 PSI | ||
| D1FWE01FCNJW0 | Quote Required | TBD | 24.0 | Nitrile | 140 | Hydraulic Valve Systems Division | 4500 | Hydraulic Pressure | 5.5 | 32 | Gray Iron | Consult catalog for additional features. | Direct Operated Proportional Directional Control Valve | 12.5 | 10% Overlap | 4-Way | DIN 43650 w/o Plug | 4 | Manifold | NG 6, CETOP 3 | 4500 PSI | ||
| D1FWE01FCNKP0 | Quote Required | TBD | 12.0 | Nitrile | 140 | Hydraulic Valve Systems Division | 4500 | Hydraulic Pressure | 5.5 | 32 | Gray Iron | Consult catalog for additional features. | Direct Operated Proportional Directional Control Valve | 12.5 | 10% Overlap | 4-Way | DIN with Plug | 4 | Manifold | NG 6, CETOP 3 | 4500 PSI | ||
| D1FWE01FCNKW0 | Quote Required | TBD | 12.0 | Nitrile | 140 | Hydraulic Valve Systems Division | 4500 | Hydraulic Pressure | 5.5 | 32 | Gray Iron | Consult catalog for additional features. | Direct Operated Proportional Directional Control Valve | 12.5 | 10% Overlap | 4-Way | DIN 43650 w/o Plug | 4 | Manifold | NG 6, CETOP 3 | 4500 PSI | ||
| D1FWE01FCNLET | Quote Required | TBD | 6.0 | Nitrile | 140 | Hydraulic Valve Systems Division | 4500 | Hydraulic Pressure | 5.5 | 32 | Gray Iron | Consult catalog for additional features. | Direct Operated Proportional Directional Control Valve | 12.5 | 10% Overlap | 4-Way | Explosion Proof | 4 | Manifold | NG 10, CETOP 5 | 4500 PSI | ||
| D1FWE01FCVJP0 | Quote Required | TBD | 24.0 | Fluorocarbon | 140 | Hydraulic Valve Systems Division | 4500 | Hydraulic Pressure | 5.5 | 32 | Gray Iron | Consult catalog for additional features. | Direct Operated Proportional Directional Control Valve | 12.5 | 10% Overlap | 4-Way | DIN with Plug | 4 | Manifold | NG 6, CETOP 3 | 4500 PSI | ||
| D1FWE01FCVJW0 | Quote Required | TBD | 24.0 | Fluorocarbon | 140 | Hydraulic Valve Systems Division | 4500 | Hydraulic Pressure | 5.5 | 32 | Gray Iron | Consult catalog for additional features. | Direct Operated Proportional Directional Control Valve | 12.5 | 10% Overlap | 4-Way | DIN 43650 w/o Plug | 4 | Manifold | NG 6, CETOP 3 | 4500 PSI | ||
| D1FWE01FCVKP0 | Quote Required | TBD | 12.0 | Fluorocarbon | 140 | Hydraulic Valve Systems Division | 4500 | Hydraulic Pressure | 5.5 | 32 | Gray Iron | Consult catalog for additional features. | Direct Operated Proportional Directional Control Valve | 12.5 | 10% Overlap | 4-Way | DIN with Plug | 4 | Manifold | NG 6, CETOP 3 | 4500 PSI | ||
| D1FWE01FCVKW0 | Quote Required | TBD | 12.0 | Fluorocarbon | 140 | Hydraulic Valve Systems Division | 4500 | Hydraulic Pressure | 5.5 | 32 | Gray Iron | Consult catalog for additional features. | Direct Operated Proportional Directional Control Valve | 12.5 | 10% Overlap | 4-Way | DIN 43650 w/o Plug | 4 | Manifold | NG 6, CETOP 3 | 4500 PSI |
