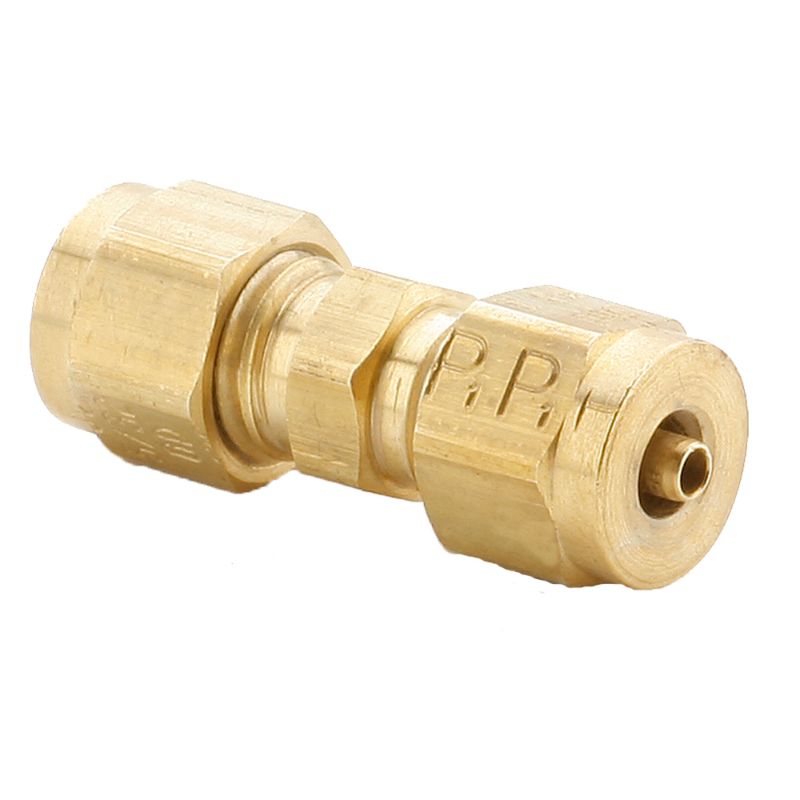

Parker 62TF-2 - Brass Compression-Style Transmission Fittings

Name: Parker 62TF-2 - Brass Compression-Style Transmission Fittings
SKU: 62TF-2
Price: 15.42 USD
Availability: InStock

Parker's Transmission fittings are designed to eliminate notch stress related to over-torque and are ideal for pressure protected pneumatic transmission applications.

AFP Availability:

10 In Stock

Summerville, SC

Partner Available:

33 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 62TF-2

$15.42/each

Qty:

Products specifications

Attribute name	Attribute value
O-Ring Material	Nitrile	Division	Fluid System Connectors Division
Connection 1 Size	Compression	Nut Material	Brass
Collet Material	Brass	Media	Compressed Air
Maximum Operating Temperature	104 °C	Technology	Fluid & Gas Handling
Connection 2 Tube Outside Diameter	na	Application	Air Shift Transmission, Seat Controls, Dash Controls
Minimum Operating Temperature	-40 °C	Division	Fluid System Connectors Division
Body Material	Brass	Brand	Parker
Maximum Operating Pressure	10 bar	Tube Material	SAE J844 Type & B Nylon Tubing
Sleeve Material	Brass	Product Style	Tube to Tube
Connection 1 Type	Compression	Connection 2 Type	Compression
Shape	Union	Connection 2 Size	1/8 inch
Connection 1 Size	1/8 inch
