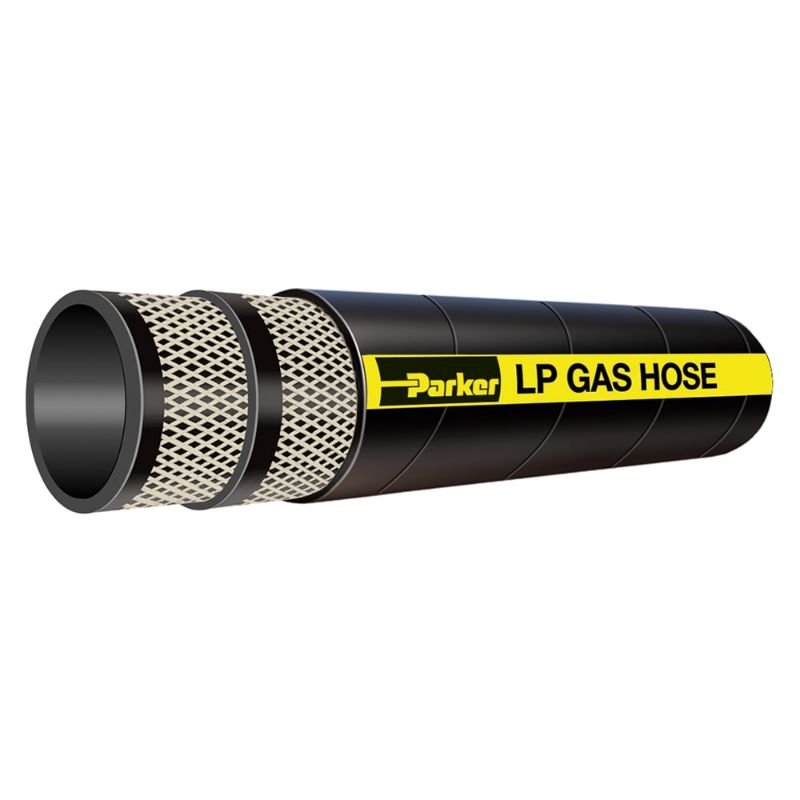

Parker 7232-1252100 - Liquid Petroleum Gas LPG Hose, Series 7232

Liquid Petroleum Gas LPG Hose is designed for bulk/high volume supply and transfer of propane in applications to 140°F and 350 psi, Series 7232

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7232-1252100

$36.33

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Minimum Operating Temperature	-40 °F	Maximum Operating Pressure	350 psi
Cover Color	Black	Maximum Operating Temperature	180 °F
Inside Diameter	31.8 mm	Cover Material	Chloroprene Rubber (CR)
Compatible Fitting	HY Series	Hose Inner Tube Material	Nitrile
Package Type	Carton	Cover Structure	Wrapped
Media	Propane	Application	Liquefied Petroleum Gas (LPG)
Specifications Met	UL 21.0	Minimum Bend Radius	12 inch
Hose Reinforcement Material	2 Braids of Textile	Weight	1.27 kg/m
Outside Diameter	46.1 mm	Standard Pack Qty (ft)	100
Hose I.D. (inch)	1-1/4	Maximum Working Pressure (psi)	350

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
