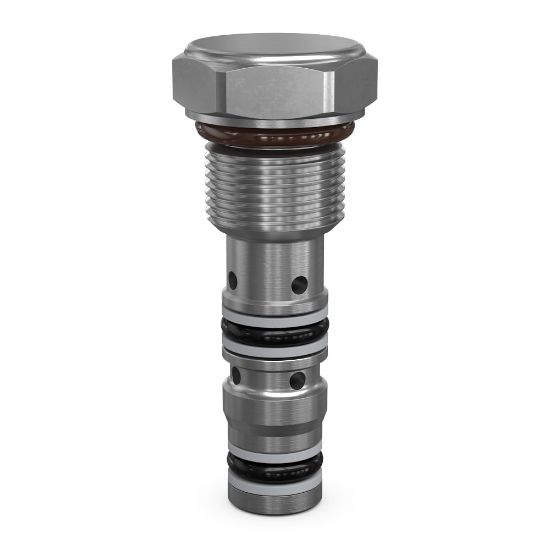

Parker CS041BV - Cartridge Ball Type Shuttle Valve

Parker's 2-position, 3-way ball type shuttle valves are designed to fit an industry common cavities and allow flows up to 50 lpm (13 gpm) and 420 bar (6000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CS041BV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	n/a	Maximum Operating Temperature	400
Cavity Size	C04-3	Division	Hydraulic Systems Division
Installation Torque	6	Leak Rate	5 drops/min @ 3000 Psi (207 bar)
Configuration	3-Way Ball Type	Function	Diverter
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Seal Material	Fluorocarbon
Actuation Type	Pressure Sensing	Standard Flow Rate Setting	n/a
Weight	0.04	Maximum Flow Rate	1
Maximum Inlet Pressure Rating	3000	For Fluid Type	Mineral-based Hydraulic Fluids
Valve Material	Steel (all parts)	Operating Temperature	-15 to 400
Operation Type	Automatic	Flow Rate	1
Minimum Operating Temperature	-15	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Operating Pressure	3000	Seal Material	Fluorocarbon
Maximum Inlet Pressure Rating	3000 PSI, 207 BAR	Flow Rate	1 GAL/MIN, 3.8 L/MIN
