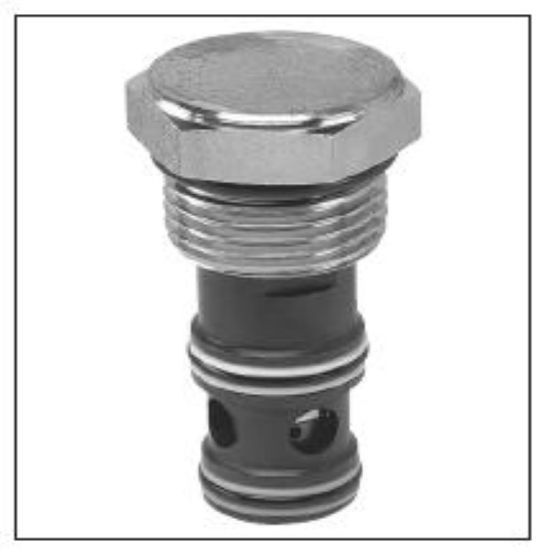

Picture of Parker CPC101PV - Single Pilot Operated, Pilot to Close Check Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker CPC101PV - Single Pilot Operated, Pilot to Close Check Valves

Pilot-to-close check valves operate as standard check valves, but block flow completely when a pilot signal is supplied; capable of flows up to 38 lpm (10 gpm) and pressures up to 240 bar (3,500 psi).
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. CPC101PV
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Flow Rate10Pilot Location3
DivisionHydraulic Valve Systems DivisionActuation TypePilot Operated
Minimum Operating Temperature-15Operating Temperature-15 to 400
Cavity SizeC10-3Flow Rate10
Flow Direction1-2 Free FlowFilter Efficiency RatingSAE Class 4
FunctionPilot to Close CheckValve MaterialSteel (all parts)
Body Materialn/aInstallation Torque16
Maximum Operating Temperature400Maximum Operating Pressure3500
For Fluid TypeSynthetic Hydraulic FluidsMaximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Pilot Pressure Ratio2:1Maximum Inlet Pressure Rating3500
Cracking Pressure5Leak Rate15 drops/min @ 3500 Psi (240 bar)
Seal MaterialFluorocarbonWeight0.31
DivisionHydraulic Systems DivisionCracking Pressure5 PSI, 0.3 BAR
Maximum Flow Rate10 GAL/MIN, 38 L/MINSeal MaterialFluorocarbon
