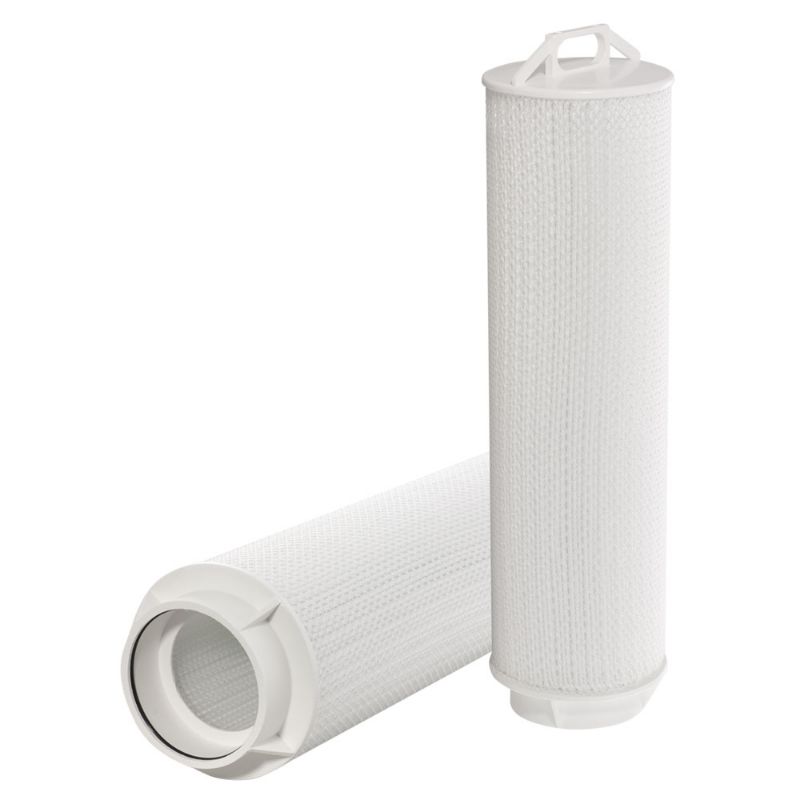

Parker MCAP100-40N - Fulflo Mega Flow Plus Large Diameter Pleated Filter Cartridge | Absolute rated, high flow capacity

Parker’s Fulflo® Mega-Flow™ Plus large diameter pleated filter cartridges are ideally suited for high flow applications where absolute particle removal is required. Each Mega-Flow Plus filter cartridge can handle flow rates up to 175 gpm (662 lpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MCAP100-40N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Filter Construction	Large Diameter Pleated	Media	Polypropylene
Division	Industrial Process Filtration Division	Industry	Industrial
Core Type	Polypropylene	Flow Rate	175 gal/min Maximum
Outside Diameter	6	End Cap Configuration	Large ID internal O-Ring/Flat cap with handle
Brand	domnick hunter	Hose Reinforcement Material & Structure	Polypropylene
Function	Clarification/Prefiltration/Polishing	End Cap Material	Glass Filled Polypropylene
Micron Rating (µm)	10	Length (inch)	40
Media	Polypropylene	Seal Material	Buna-N
