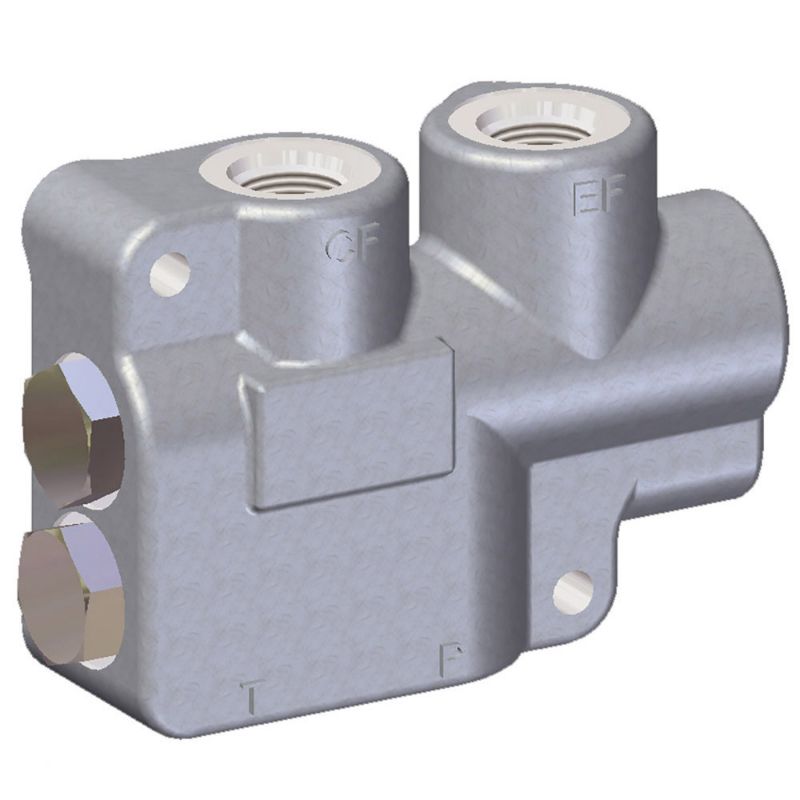

Picture of Parker CFD-10-1.5-NR - Constant Volume Priority Flow Control Valve – CFD Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker CFD-10-1.5-NR - Constant Volume Priority Flow Control Valve – CFD Series

Parker’s CFD Controlled Flow/Priority Type Flow Divider is designed for providing a fixed 1-5 GPM controlled flow source for power steering systems and other applications where two separate hydraulic power circuits are to be served from a single pump.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. CFD-10-1.5-NR
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Minimum Operating Temperature-40Connection TypeSAE
DivisionHydraulic Valve Systems DivisionSeal Materialn/a
Maximum Operating Temperature200Weight8
Body MaterialCast IronMaximum Flow Raten/a
Maximum Operating Pressure2500ConfigurationInline
FunctionFlow ControlActuation TypeHydraulic Pressure
Flow Rate5.63Connection Size10
Flow Rate (gpm)1.5Connection SizeSAE 8 / SAE 10
Pressure Relief ValveNo Relief
