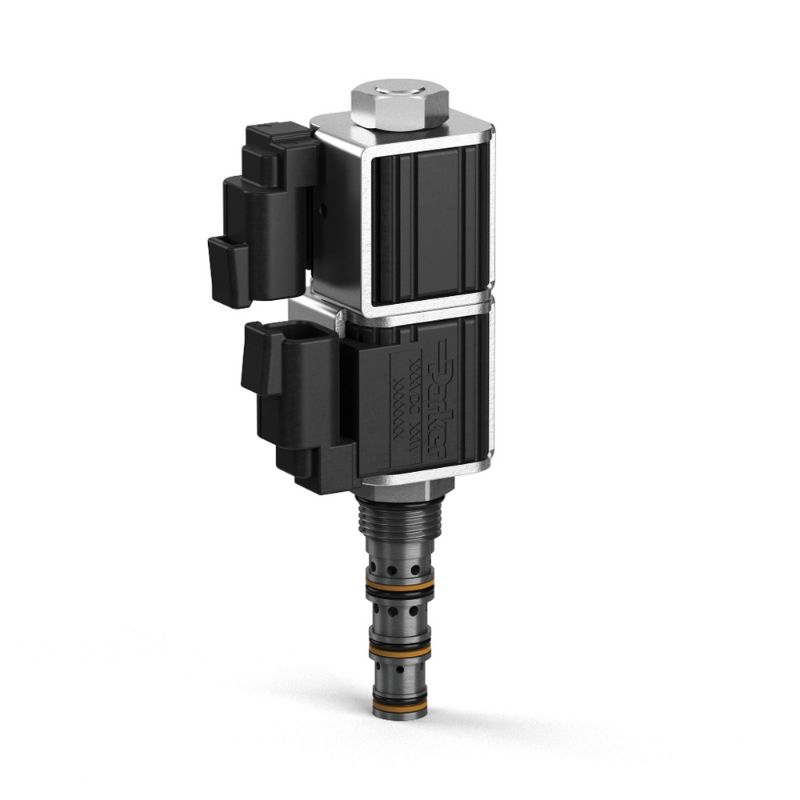

Parker GP0251L1V - Directional Control Proportional Valves

Parker’s family of 3-position, 4-way proportional directional control valves come standard with closed or float center spools and are capable of flows up to 32 lpm (8.5 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GP0251L1V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Body Material	n/a
Maximum Operating Pressure	5000	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15
Weight	0.34	Maximum Inlet Pressure Rating	5000
Installation Torque	22	Coil Nut Tightening Torque	3
Cavity Size	C08-4	Configuration	Normally Closed
Actuation Type	Electrical, Manual	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operation Type	Solenoid operated, Manually operated	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Operating Temperature	-15 to +400
Frequency	100-400	Maximum Operating Temperature	+400
Coil Type	1/2" Super Coil	Response Time	50
Maximum Tank Pressure	3000	Function	Proportional Directional Control
Leak Rate	10 @ 3000 PSI (210 BAR)	Hysteresis	Less than 6%
Flow Rate Accuracy	+/- 15% @ 75% Nominal Current and Constant DeltaP Maintained with Pressure Compensator	Variation of Opening Point	25% - 30% of Input Signal
Power Consumption	14, 19	Current	1.15 @ 12 VDC, 1.58 @ 12 VDC, 0.58 @ 24 VDC, 0.79 @ 24 VDC
Flow Rate	0.9, 1.4	Maximum Flow Rate	0.9, 1.4
Override Functionality	Non-Detented	Seal Material	Fluorocarbon
Configuration	Normally Closed	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Override Functionality	Non-Detented	Flow Rate	0.9, 1.4 GAL/MIN, 3.4, 5.3 L/MIN
