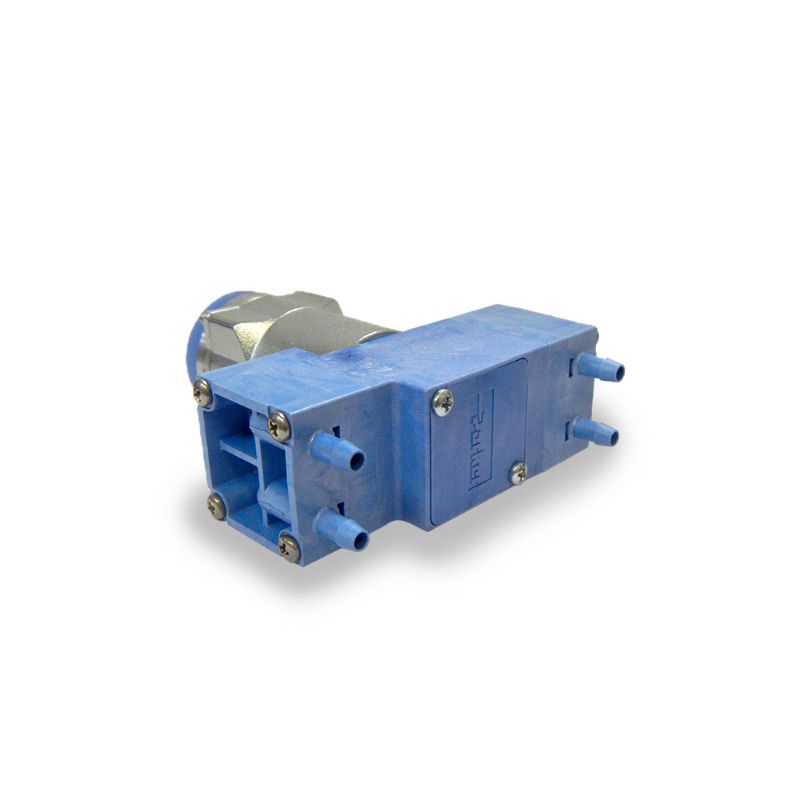

Parker V016-61 - LTC Miniature Diaphragm Pump (Liquid)

Parker’s LTC Miniature Diaphragm pump is a compact versatile pump with the option of a brush or brushless DC motor drives that can be configured for specific requirements and handle a wide variety of liquid media and range of pressures.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V016-61

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Height	81.1 mm	Operating Temperature	5 to 50 °C
Vacuum Pressure Rating	-686 mm-Hg	Maximum Continuous Pressure	2068 mbar
Maximum Continuous Vacuum Pressure	-686 mm-Hg	Flow Rate	up to 1.5 L/min
Length	3.35 inch	Operational Life	10000 Hours
Operating Pressure	2068 mbar	Diaphragm Material	EPDM
Body Material	Vectra A130 LCP	Industry Application	Liquid Chromatography
Division	Precision Fluidics Division	For Fluid Type	Gas
Product Type	Diaphragm Pump	Weight	333 g
Width	1.2 inch	Noise Level	45 dBA
Motor Type	Brushless DC	Pump Size	Dual Head
Pump Type	Pressure and/or Vacuum	Motor Option	Brushless DC
Connection Style	Barb 1/8" ID or 4 mm ID Tubing	Operational Life	10,000 Hours
Free Flow Rate	Up to 1.5 L/min
