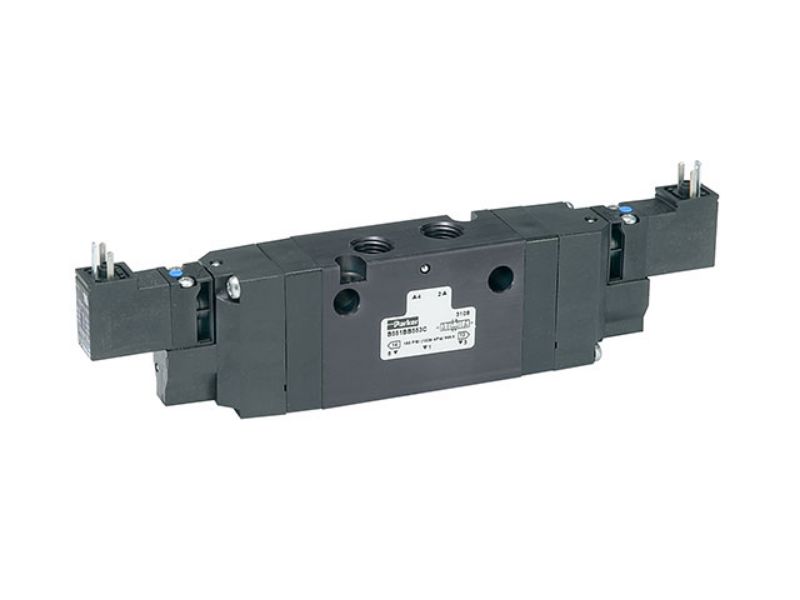

Parker B350BB549C - B Series Double Solenoid 4-way 3-position Valve

B Series Double Solenoid 4-way 3-position Valve

Availability:	Quote Required
Partner Available:	9 In Stock

Brand Parker

Part No. B350BB549C

$245.17

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Override Type	Non-locking
Center Condition	All Ports Blocked	Operator Type Detail	Double
Pkg Qty	1	CV Factor	0.6
Pilot Supply	Internal	Port	1/8 NPT
Offset Return Type	Spring Return	Solenoid Voltage	24VDC
UOM	EA	Valve Passages	4-way
Supply Pressure Range	30 to 145 PSIG (2.1 to 10 bar)	Parker Group	Automation
Override Type	Non-locking	Solenoid Voltage	24VDC
Pneumatic Valve Type	Inline Valve	Offset Return Type	Spring Return
Operator Type	Solenoid	Port Inch/BSP	NPT
CV Factor	0.6	Parker Division	Pneumatic
Valve Positions	3-position	Operator Type Detail	Double
Series	B	Center Condition	All Ports Blocked
Port	1/8 NPT	Solenoid Connection	15mm 3-Pin DIN 43650C
Operating Temperature	-15°C to 49°C (5°F to 120°F)	Pilot Supply	Internal
