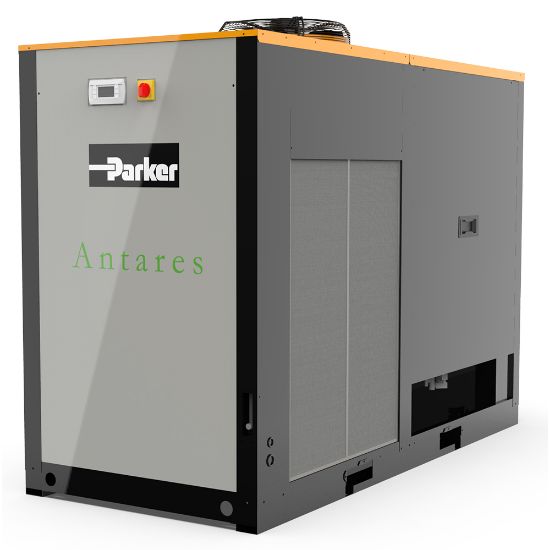

Parker ATT090-A23015012EXTBTP - Antares Series Low Energy Tandem Technology Compressed Air Dryer

This product is no longer available please refer to Antares Plus-E instead.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ATT090-A23015012EXTBTP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Technology	Filtration
Division	Gas Separation and Filtration Division EMEA	Division	Gas Separation and Filtration Division EMEA
Port Size	1-1/2 inch	Connection Type	BSPP
Specifications Met	PED 2014/68/EU Fluid Group II	Depth	55.7 inch
Width	31.7 inch	Height	47.8 inch
Weight	739 lb	Industry	Industrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/>Electronics<br/>Pharmaceuticals<br/>Medical & Dental
ISO Grade	Standard: Class 2.2.2<br/>Options: Class 2.1.2 or Class 2.3.2	Application	Compressed Air Applications
Noise Level	< 75 dBA	Product Type	Compressed Air Dryer
Product Style	Hybrid	Product Series	Antares
Refrigerant Type	R407c	Power Consumption	1.94 kW
Operating Pressure	4 to 12 barg	Pressure Dew Point	Options: -70°C (-100°F) or -20°C (-4°F)
Ambient Temperature	122.0 °F Maximum	Compatible Prefilter	OIL-X AOPX030G and AAPX030G (Included)
Operating Temperature	41 to 149 °F	Compatible After Filter	OIL-X AOPX030G (Included)
Ingress Protection Rating	IP44 Indoor Use Only	Drain	External Electonic
Options	Bypass and Temperature Probe	Flow Rate	360 m³/h @7 barg (240 cfm @102 psig)
Electrical Requirements	230V 1ph 50Hz
