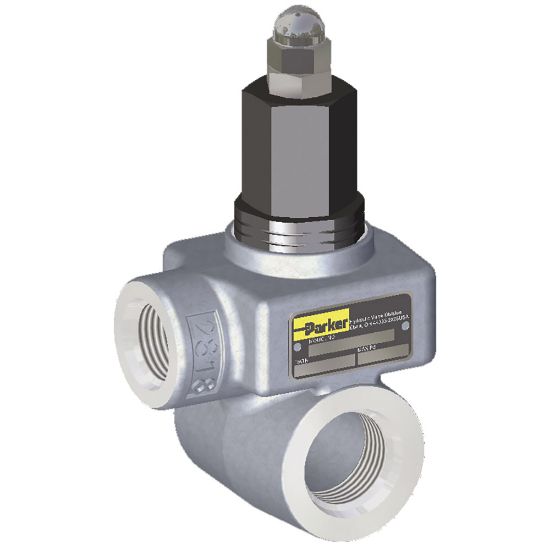

Parker WJL-10-A-2000 - In-Line Mounted Differential Poppet Relief Valve – WJL Series

Parker’s WJL In-line Relief Valve rated at 25 GPM is designed for limiting the maximum pressure which can be applied to the portion of the hydraulic circuit where it is installed.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. WJL-10-A-2000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	High Strength Cast Iron	Weight	1.4 kg
For Fluid Type	Hydraulic Oil	Maximum Operating Temperature	+200 °F
Connection Type	SAE	Division	Hydraulic Valve Systems Division
Maximum Operating Pressure	3000 psi	Mounting Type	In-Line
Pressure Control Range	1250-2000 psi	Product Style	In-Line Mounted Differential
Maximum Flow Rate	25 Gal/min	Connection Size	#10
Seal Material	Nitrile	Actuation Type	Hydraulic Pressure
Minimum Operating Temperature	-40 °F	Adjustment Type	Screw Adjustable
Pressure Relief Setting (psi)	1250-2000	Port Size	SAE-10
