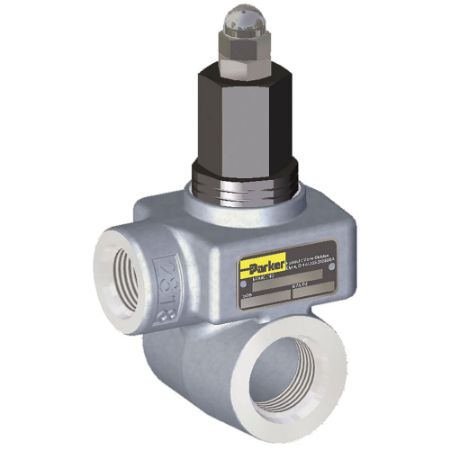

In-Line Mounted Differential Poppet Relief Valve – WJL Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s WJL is a compact, low profile relief design that is either shim or screw adjustable from 500 to 2000 PSI. Typical applications include main system pressure limiting as well as actuator protection.
Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• High-tensile cast iron body
• Compact, low profile design
• Hardened and ground poppet
• Standard porting options are 1/2” NPT and 3/4” NPT as well as SAE-10 and SAE-12
• The WJL is rated at 3000 PSI with SAE ports with a maximum recommend pump or actuator flow of 25 GPM
Applications:
• Suitable for various mobile applications
Read More...Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• High-tensile cast iron body
• Compact, low profile design
• Hardened and ground poppet
• Standard porting options are 1/2” NPT and 3/4” NPT as well as SAE-10 and SAE-12
• The WJL is rated at 3000 PSI with SAE ports with a maximum recommend pump or actuator flow of 25 GPM
Applications:
• Suitable for various mobile applications
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Connection Type | Maximum Operating Pressure | Body Material | Maximum Operating Temperature | Seal Material | Weight | For Fluid Type | Connection Size | Maximum Flow Rate | Product Style | Mounting Type | Pressure Control Range | Actuation Type | Minimum Operating Temperature | Pressure Relief Setting (psi) | Port Size | Adjustment Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WJL-10-1250 | Quote Required | TBD | Hydraulic Valve Systems Division | SAE | 210 bar | High Strength Cast Iron | +200 °F | Nitrile | 1.4 kg | Hydraulic Oil | #10 | 25 Gal/min | In-Line Mounted Differential | In-Line | 500-1250 psi | Hydraulic Pressure | -40 °F | 500-1250 | SAE-10 | Shim Adjustable | |||
| WJL-10-2000 | Quote Required | TBD | Hydraulic Valve Systems Division | SAE | 3000 psi | High Strength Cast Iron | +200 °F | Nitrile | 1.4 kg | Hydraulic Oil | #10 | 25 Gal/min | In-Line Mounted Differential | In-Line | 1250-2000 psi | Hydraulic Pressure | -40 °F | 1250-2000 | SAE-10 | Shim Adjustable | |||
| WJL-10-2500 | Quote Required | TBD | Hydraulic Valve Systems Division | SAE | 210 bar | High Strength Cast Iron | +200 °F | Nitrile | 1.4 kg | Hydraulic Oil | #10 | 25 Gal/min | In-Line Mounted Differential | In-Line | 2000-2500 psi | Hydraulic Pressure | -40 °F | 2000-2500 | SAE-10 | Shim Adjustable | |||
| WJL-10-3000 | Quote Required | TBD | Hydraulic Valve Systems Division | SAE | 3000 psi | High Strength Cast Iron | +200 °F | Nitrile | 1.4 kg | Hydraulic Oil | #10 | 25 Gal/min | In-Line Mounted Differential | In-Line | 2000-3000 psi | Hydraulic Pressure | -40 °F | 2000-3000 | SAE-10 | Shim Adjustable | |||
| WJL-10-A-1250 | Quote Required | TBD | Hydraulic Valve Systems Division | SAE | 3000 psi | High Strength Cast Iron | +200 °F | Nitrile | 3 lb | Hydraulic Oil | #10 | 25 Gal/min | In-Line Mounted Differential | In-Line | 500-1250 psi | Hydraulic Pressure | -40 °F | 500-1250 | SAE-10 | Screw Adjustable | |||
| WJL-10-A-2000 | Quote Required | TBD | Hydraulic Valve Systems Division | SAE | 3000 psi | High Strength Cast Iron | +200 °F | Nitrile | 1.4 kg | Hydraulic Oil | #10 | 25 Gal/min | In-Line Mounted Differential | In-Line | 1250-2000 psi | Hydraulic Pressure | -40 °F | 1250-2000 | SAE-10 | Screw Adjustable | |||
| WJL-10-A-2500 | Quote Required | TBD | Hydraulic Valve Systems Division | SAE | 3000 psi | High Strength Cast Iron | +200 °F | Nitrile | 3 lb | Hydraulic Oil | #10 | 25 Gal/min | In-Line Mounted Differential | In-Line | 2000-2500 psi | Hydraulic Pressure | -40 °F | 2000-2500 | SAE-10 | Screw Adjustable | |||
| WJL-10-A-3000 | Quote Required | TBD | Hydraulic Valve Systems Division | SAE | 3000 psi | High Strength Cast Iron | +200 °F | Nitrile | 1.4 kg | Hydraulic Oil | #10 | 25 Gal/min | In-Line Mounted Differential | In-Line | 2000-3000 psi | Hydraulic Pressure | -40 °F | 2000-3000 | SAE-10 | Screw Adjustable | |||
| WJL-12-1250 | Quote Required | TBD | Hydraulic Valve Systems Division | SAE | 3000 | High Strength Cast Iron | +200 | Nitrile | 3 | Hydraulic Oil | #12 | 25 | In-Line Mounted Differential | In-Line | 500-1250 | Hydraulic Pressure | -40 | 500-1250 | SAE-12 | Shim Adjustable | |||
| WJL-12-2000 | Quote Required | TBD | Hydraulic Valve Systems Division | SAE | 3000 | High Strength Cast Iron | +200 | Nitrile | 3 | Hydraulic Oil | #12 | 25 | In-Line Mounted Differential | In-Line | 1250-2000 | Hydraulic Pressure | -40 | 1250-2000 | SAE-12 | Shim Adjustable | |||
| WJL-12-2500 | Quote Required | TBD | Hydraulic Valve Systems Division | SAE | 3000 psi | High Strength Cast Iron | +200 °F | Nitrile | 3 lb | Hydraulic Oil | #12 | 25 Gal/min | In-Line Mounted Differential | In-Line | 2000-2500 psi | Hydraulic Pressure | -40 °F | 2000-2500 | SAE-12 | Shim Adjustable | |||
| WJL-12-3000 | Quote Required | TBD | Hydraulic Valve Systems Division | SAE | 3000 psi | High Strength Cast Iron | +200 °F | Nitrile | 1.4 kg | Hydraulic Oil | #12 | 25 Gal/min | In-Line Mounted Differential | In-Line | 2000-3000 psi | Hydraulic Pressure | -40 °F | 2000-3000 | SAE-12 | Shim Adjustable | |||
| WJL-12-A-1250 | Quote Required | TBD | Hydraulic Valve Systems Division | SAE | 3000 psi | High Strength Cast Iron | +200 °F | Nitrile | 1.4 kg | Hydraulic Oil | #12 | 25 Gal/min | In-Line Mounted Differential | In-Line | 500-1250 psi | Hydraulic Pressure | -40 °F | 500-1250 | SAE-12 | Screw Adjustable | |||
| WJL-12-A-2000 | Quote Required | TBD | Hydraulic Valve Systems Division | SAE | 3000 | High Strength Cast Iron | +200 | Nitrile | 3 | Hydraulic Oil | #12 | 25 | In-Line Mounted Differential | In-Line | 1250-2000 | Hydraulic Pressure | -40 | 1250-2000 | SAE-12 | Screw Adjustable | |||
| WJL-12-A-2500 | Quote Required | TBD | Hydraulic Valve Systems Division | SAE | 3000 psi | High Strength Cast Iron | +200 °F | Nitrile | 3 lb | Hydraulic Oil | #12 | 25 Gal/min | In-Line Mounted Differential | In-Line | 2000-2500 psi | Hydraulic Pressure | -40 °F | 2000-2500 | SAE-12 | Screw Adjustable | |||
| WJL-12-A-3000 | Quote Required | $252.00 | EA | Hydraulic Valve Systems Division | SAE | 3000 psi | High Strength Cast Iron | +200 °F | Nitrile | 3 lb | Hydraulic Oil | #12 | 25 Gal/min | In-Line Mounted Differential | In-Line | 2000-3000 psi | Hydraulic Pressure | -40 °F | 2000-3000 | SAE-12 | Screw Adjustable | ||
| WJL-50-1250 | Quote Required | TBD | Hydraulic Valve Systems Division | NPT | 138 bar | High Strength Cast Iron | +200 °F | Nitrile | 1.4 kg | Hydraulic Oil | 1/2" | 25 Gal/min | In-Line Mounted Differential | In-Line | 500-1250 psi | Hydraulic Pressure | -40 °F | 500-1250 | 1/2" NPT | Shim Adjustable | |||
| WJL-50-2000 | Quote Required | $242.25 | EA | Hydraulic Valve Systems Division | NPT | 138 bar | High Strength Cast Iron | +200 °F | Nitrile | 1.4 kg | Hydraulic Oil | 1/2" | 25 Gal/min | In-Line Mounted Differential | In-Line | 1250-2000 psi | Hydraulic Pressure | -40 °F | 1250-2000 | 1/2" NPT | Shim Adjustable | ||
| WJL-50-2500 | Quote Required | TBD | Hydraulic Valve Systems Division | NPT | 2000 psi | High Strength Cast Iron | +200 °F | Nitrile | 1.4 kg | Hydraulic Oil | 1/2" | 25 Gal/min | In-Line Mounted Differential | In-Line | 2000-2500 psi | Hydraulic Pressure | -40 °F | 2000-2500 | 1/2" NPT | Shim Adjustable | |||
| WJL-50-3000 | Quote Required | TBD | Hydraulic Valve Systems Division | NPT | 2000 psi | High Strength Cast Iron | +200 °F | Nitrile | 3 lb | Hydraulic Oil | 1/2" | 25 Gal/min | In-Line Mounted Differential | In-Line | 2000-3000 psi | Hydraulic Pressure | -40 °F | 2000-3000 | 1/2" NPT | Shim Adjustable |
