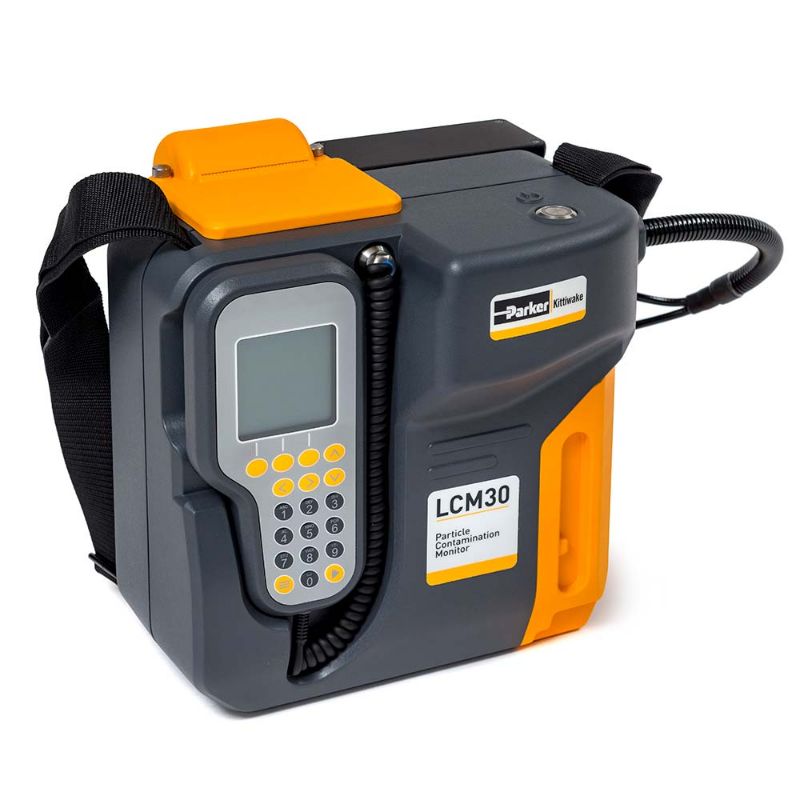

Picture of Parker ACM302024AU - icountLaserCM30 - Portable Particle Monitor

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker ACM302024AU - icountLaserCM30 - Portable Particle Monitor

The Parker icountLCM30 is a next generation fluid system contamination monitor offering an under 90 second test procedure that reports particle micron size and distribution.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. ACM302024AU
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Port TypeMetricBrandParker
Body MaterialBrassDivisionHydraulic & Industrial Process Filtration Division EMEA
DivisionHydraulic & Industrial Process Filtration Division EMEATechnologyHydraulics
Product TypeCondition MonitorSpecifications MetCE Certification
ApplicationReach StackersWidth206 mm
Height281 mmWeight7.5 kg
IndustryIndustrial & Chemical ProcessingOperating Pressure2 to 420 bar
Operating Temperature+5 to +40 °CLength291 mm
Accuracy< 7 %Flow Rate< 400 L/min
Port SizeM16Cycle Time< 90 seconds in both single and multi-test mode.
Product StyleParticle Detector/CounterSensing MethodLaser
Operating Humidity(%RH) ±5% RHCommunication InterfaceUSB-A to B Port
Electrical Requirements110 to 240 VACIngress Protection RatingIP54
Maximum Fluid Temperature176 °FMinimum Fluid Temperature5 °C
Signal OutputDisplaySeal MaterialFluorocarbon
OptionsStandardProduct TypeCondition Monitor
For Fluid TypeMineral-based Oils and Petroleum-based FuelCalibration TypeMTD calibrated
Electrical ConnectionAustralia
