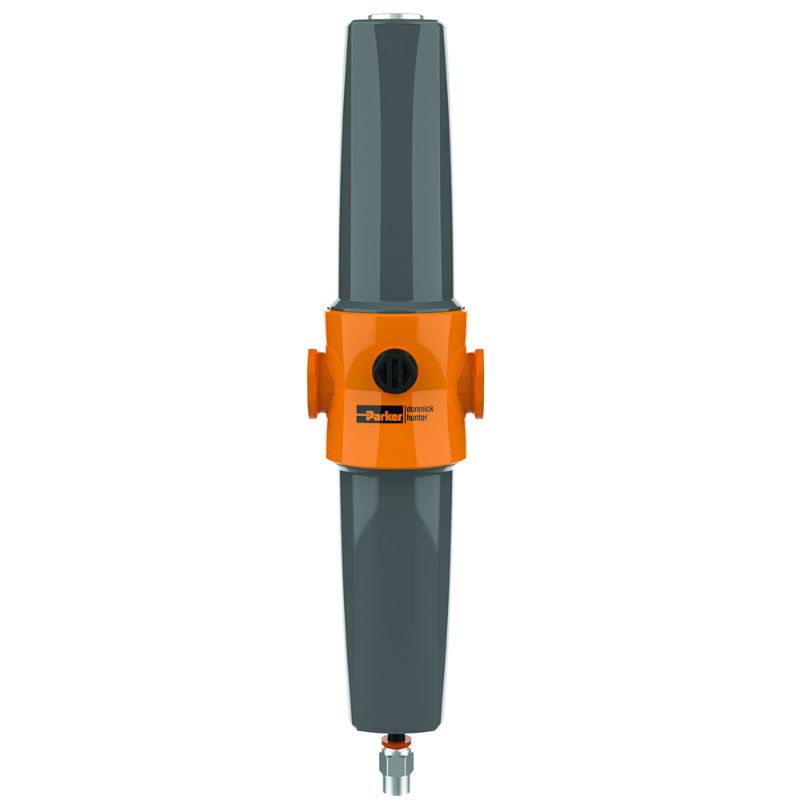

Picture of Parker AC010BNFI - OIL-X 'Point Of Use' Oil Vapour Reduction Filters

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker AC010BNFI - OIL-X 'Point Of Use' Oil Vapour Reduction Filters

Activated carbon filters for the reduction of oil vapour and hydrocarbon odours, providing a maximum remaining oil content of <0.003mg/m³ (<0.003ppm) @ 21°C (70°F).
AFP Availability:
Quote Required
Partner Available: Quote Required
Brand Parker
Part No. AC010BNFI
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
Brand Parker Technology Filtration
Division Gas Separation and Filtration Division EMEA Industry Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Application Compressed Air and Nitrogen Gas Applications Division Gas Separation and Filtration Division EMEA
Micron Rating down to 0.01 MICRON Product Type Compressed Air Filter
Width 76.0 mm Materials of Construction Die Cast Aluminium
Operating Pressure 15 to 232 psig Product Series OIL-X Grades ACS and AC
Operating Temperature 2 to 30 °C Depth 2.6 inch
Height 311.0 mm Weight 0.8 kg
Filter Type Oil Vapour Reduction Compatible Element P010AA and 010AC<br/>Requires Both
Specifications Met Fully tested - In accordance with ISO8573-2, 4 and 5<br/><br/>Filtration performance independently validated - by Lloyds Register.<br/><br/>PED 2014/68/EU Fluid Group II Residual Oil Content Aerosols:<br/>0.01 mg/m³ / 0.01 ppm(w) <br/>@ 21°C (70°F)<br/><br/>Vapour:<br/>0.003 mg/m³ / 0.003 ppm(w) <br/>@ 21°C (70°F)
Pressure Differential < 773 mbar Initial Dry, 100% Flow Element Change Interval P010AA:<br/> 12 Months<br/><br/>010AC:<br/> When oil vapour is detected
Connection Type NPT Port Size ⅜ inch
Drain Automatic Float Filter Stages Double Stage
Maximum Flow Rate 22 m³/h @ 7 barg (13 cfm @ 102 psig)
