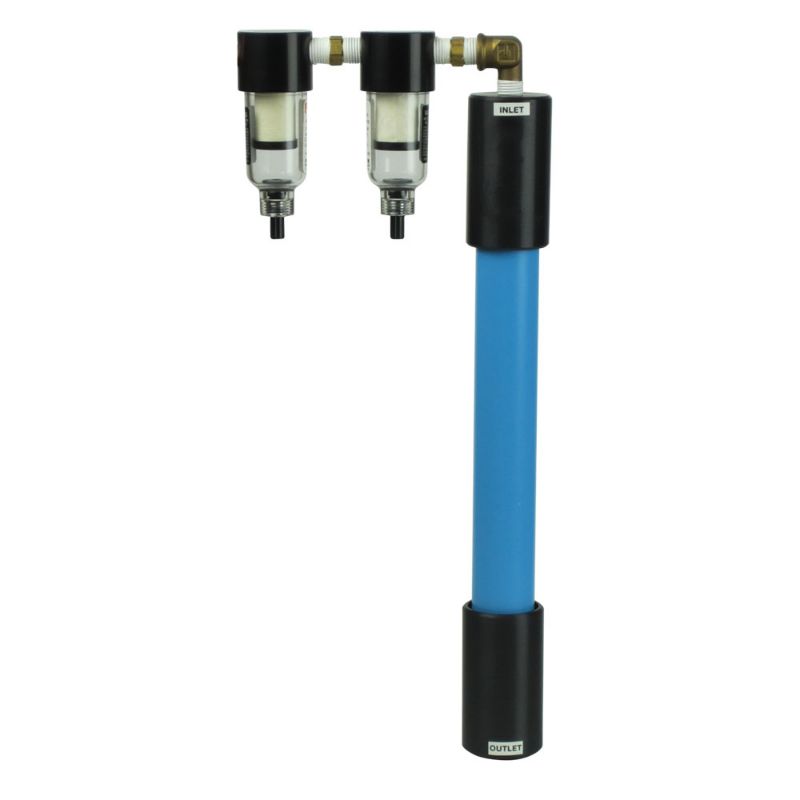

Parker FMD35-006 - Compressed Air & Gas - Up to 150 PSIG - FMD Membrane Dryer Series

Finite's FMD Membrane Dryer Series is designed to remove water vapor and aersols at point-of-use for intermittent flows up to 40 SCFM with a +35°F dewpoint and 10 SCFM with a -40°F dewpoint.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FMD35-006

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Industrial Gas Filtration and Generation Division	Weight	0.38 kg
Maximum Operating Pressure	4.1 to 10.3 barg	Connection Type	NPT
Brand	Finite	Width	14 cm
Maximum Operating Temperature	4.4 to 37.8 °C	Compatible Prefilter Element	6HM06-013
Height	14.5 inch	Purge Rate (SCFM)	0.25 @ 100 PSI
Dewpoint (F)	35	Port Connection (inch)	1/4"
