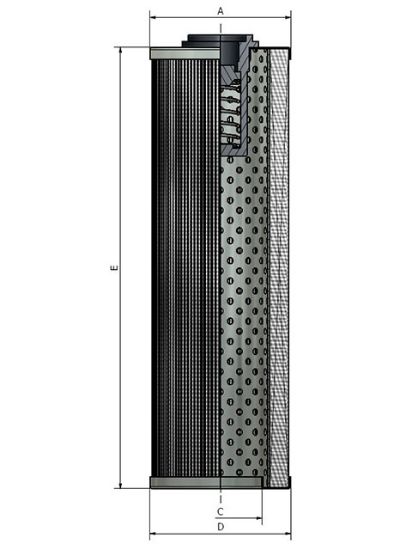

Parker 941078 - Replacement Elements - Medium Pressure Filter 12CS/50CS Series

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans! An environmentally friendly solution that is engineered with the latest in Microglass technology and economical.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 941078

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Style	Hydraulic Filter Element	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Length	Double	Product Series	12CS
Seal Material	Nitrile	Filter Element Type	WR water removal
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Product Type	Replacement Element
Filter Housing Series	12CS	Seal Material	Nitrile
Length	double	Filter Element	WR Water Removal
UOM	EA	Media Type	Microglass
Pkg Qty	1	Efficiency βx(C) ≥ 200	25 (nominal) µ
Seals	NBR: Nitrile	A Dimension	2.48 in (63 mm)
Bottom Endcap Material	Glass reinforced nylon	Glue Endcaps Adhesive	Epoxy
Media Type	Microglass	Parker Division	Hydraulic Filter
Seals	NBR: Nitrile	B Dimension	1.11 in (28.2 mm)
Parker Group	Filtration	Glue Side Seam Adhesive	Epoxy
Efficiency βx(C) ≥ 200	25 (nominal) µ	Media Composition Detail	Absorbent Polymer & fiberglass with coated mesh on both sides
Media	25 Micron Nominal	Series	ParFit
E Dimension	9.13 in (231.9 mm)	Top Endcap Material	Glass reinforced nylon
