Parker 937617Q - Replacement Elements - Medium Pressure Filter 12CS/50CS Series

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans! An environmentally friendly solution that is engineered with the latest in Microglass technology and economical.

AFP Availability:	Quote Required
Partner Available:	66 In Stock

Brand Parker

Part No. 937617Q

$82.65/each

Products specifications

Attribute name	Attribute value
UOM	EA	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Filter Element Type	Coreless	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Product Type	Replacement Element	Product Style	Hydraulic Filter Element
Filter Element	10QE Microglass	Length	double
Seal Material	Fluorocarbon	Filter Housing Series	12CS
Filter Media Type	Ecoglass III	Efficiency βx(C) ≥ 200	9 µ
Collapse Pressure (psi)	150 psi	UOM	EA
Collapse Pressure (bar)	10.3 bar	Nominal Filter Rating	10 micron
Element Length	Double	Seals	FKM: Fluorocarbon
Pkg Qty	1	Efficiency βx(C) ≥ 1000	12 µ
Operating Temperature	-15F to 225F (-26C to 107C)	Operating Temperature	-15F to 225F (-26C to 107C)
Efficiency βx(C) ≥ 200	9 µ	Top Endcap Material	Glass reinforced nylon
Series	12CS	Element Weight (kg)	1.1
Glue Endcaps Adhesive	Polyurethane	Filter Media Type	Ecoglass III
Bottom Endcap Material	Glass reinforced nylon	Element Type	Coreless

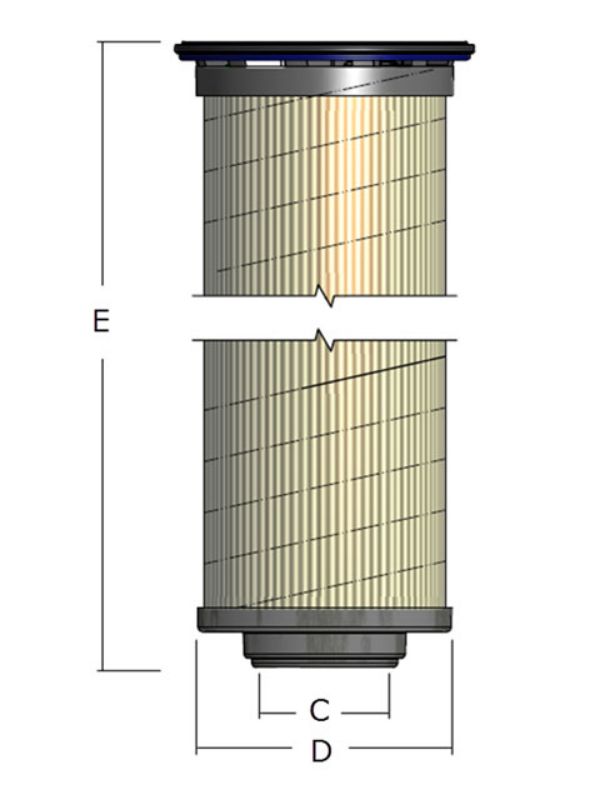

D Dimension	2.48 in (63 mm)	Parker Division	Hydraulic Filter
Parker Group	Filtration	Seals	FKM: Fluorocarbon
Glue Side Seam Adhesive	Polyurethane	Element Length	Double
Efficiency βx(C) ≥ 1000	12 µ	Nominal Filter Rating	10 micron
Filter Media Code	10QE	Media Composition Detail	Multilayer fiberglass with PBT mesh on both sides
Collapse Pressure (bar)	10.3 bar	E Dimension	9.13 in (232 mm)
C Dimension	1.1 in (28 mm)	Collapse Pressure (psi)	150 psi
