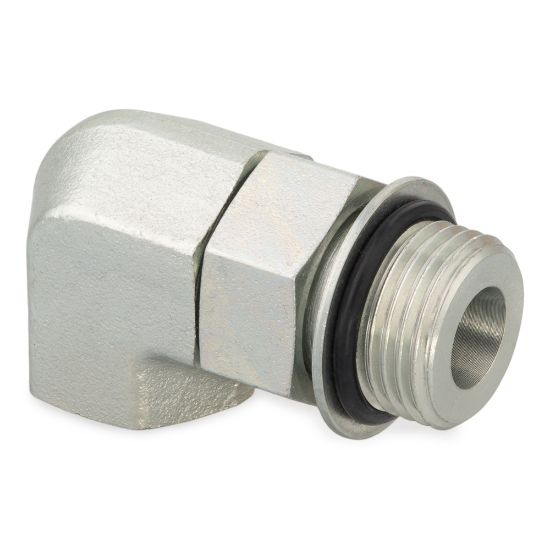

Parker 8-3/8 AOEG-S - Pipe Fittings and Port Adapters

Name: Parker 8-3/8 AOEG-S - Pipe Fittings and Port Adapters
SKU: 8-3/8 AOEG-S
Price: 17.98 USD
Availability: InStock

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:

25 In Stock

Norfolk, VA	15
Ashland, VA	2
Knoxville, TN	2
Knoxville, TN	2
Richmond, VA	2
Johnson City, TN	2

Partner Available:

498 In Stock

Brand Parker

Part No. 8-3/8 AOEG-S

$17.98

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Dynamic Pressure	4500 psi
Division	Tube Fittings Division	Fitting Type	Port Adapter
Connection 4 Thread Size	na	Dimensional Weight	0.03871402877697842 lb
Connection 4 Size	na	Body Material	Steel
Connection 2 Thread Size (inch)	3/8-18	Connection 2 Style	Female NPT/NPTF
Connection Style	SAE-ORB to NPT/NPTF	Connection 3 Style	na
O-Ring Material	90 Durometer Nitrile	Connection 1 Style	Male SAE-ORB
Connection 2 Thread Size (mm)	na	Length (inch)	na
Connection 1 Thread Size (inch)	3/4-16	Shape	90° Elbow
Body Material	Steel	Connection 3 Thread Size (inch)	na
Connection 1 Thread Size (mm)	na

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
