*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

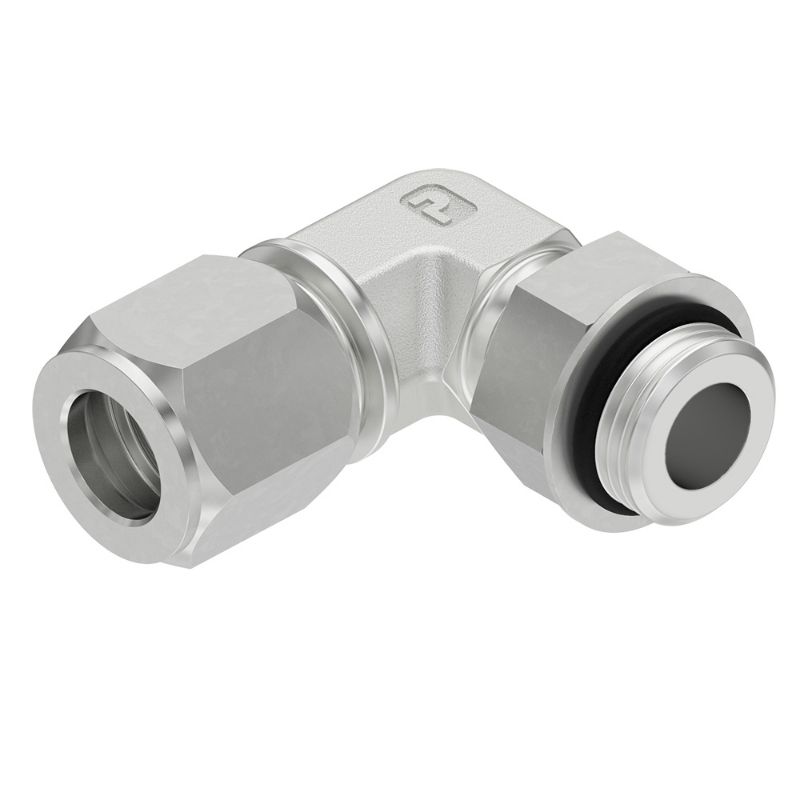

Parker 8-10 C5BU-S - Ferulok 24° Flareless Fittings

Parker's Ferulok 24° Flareless fittings create a visible heavy bite allowing easy inspection and a rear compression grip which firmly holds the nut and tubing, dampening the effects of vibration.

Availability:	Quote Required
Partner Available:	30 In Stock

Brand Parker

Part No. 8-10 C5BU-S

$88.06

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Dimensional Weight	0.062320143884892085 lb
Division	Tube Fittings Division	Maximum Dynamic Pressure	4500 psi
Connection 4 Size	na	Specifications Met	SAE J514
Connection Type	Flareless Bite Type	Connection 4 Tube Outside Diameter	na
Body Material	Steel	O-ring	90 Durometer Nitrile
Connection 2 Style	Male SAE-ORB	Connection 3 Tube O.D. (inch)	na
Connection 2 Thread Size (inch)	7/8-14	Connection 1 Style	Male Flareless Bite Type
Connection 3 Style	na	Connection 2 Tube O.D. (inch)	na
Connection 3 Thread Size (inch)	na	Connection 1 Tube O.D. (inch)	1/2
Shape	90° Elbow	Connection Style	Tube to SAE Straight Thread
Body Material	Steel
