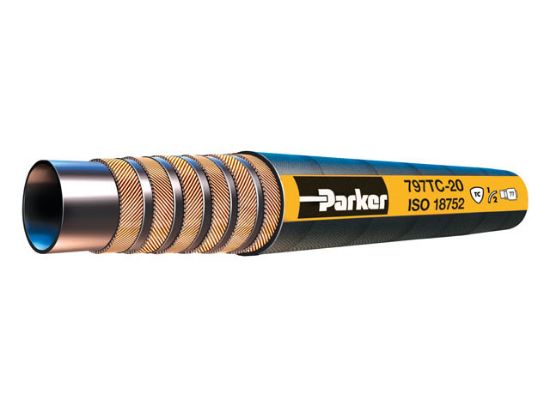

Parker 797TC-4-RL - 797TC Series

Name: Parker 797TC-4-RL - 797TC Series
SKU: 797TC-4-RL
Price: 6.49 USD
Availability: InStock

High Tough Cover Constant Pressure 6000 PSI Hydraulic Hose

AFP Availability:

589 In Stock

Richmond, VA	236
Grovetown, GA	177
Fayetteville, NC	132
Mooresville, NC	41
Ashland, VA	3 (Pickup only)

Partner Available:

29722 In Stock

Brand Parker

Part No. 797TC-4-RL

$6.49/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Inner Diameter	0.25 Inch
Material	Rubber	Mating Fitting Series	43
Working Pressure	6,000 psi (42 MPa)	Parker Group	Fluid Connector
Inch/Metric	Inch	Parker Division	Hose Products
Inner Diameter	0.25 Inch	Inner Diameter Inch/mm	Inch
Material	Rubber	Application	Hydraulic
Working Pressure Range	> 5000 PSI (345 bar)	Hose Category	Hydraulic Industry Standard
Operating Temperature	-40°F to +212°F (-40°C to +100°C)	Trade Name	GlobalCore
Mating End Fitting Series	43	Specification	ISO 18752
ISO 18752 Performance	AC	Minimum Bend Radius	2 Inch
Hose Pressure Range	High	Series	797TC
Distinct Properties	Tough Cover Constant Pressure 6000 PSI	Working Pressure	6,000 psi (42 MPa)
