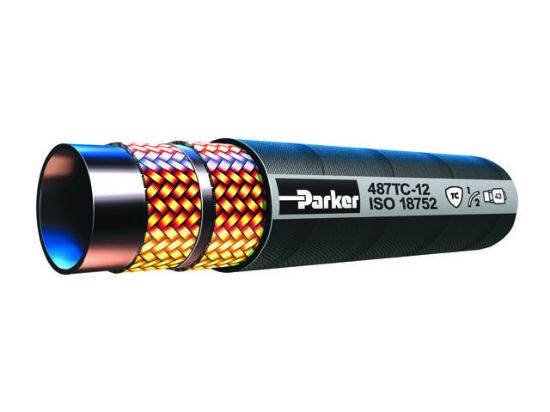

Parker 487TC-4-RL - 487TC Series

Name: Parker 487TC-4-RL - 487TC Series
SKU: 487TC-4-RL
Price: 6.12 USD
Availability: InStock

High Tough Cover Constant Pressure 4000 PSI Hydraulic Hose

AFP Availability:

1404 In Stock

Jacksonville, FL	409
Richmond, VA	401
Fayetteville, NC	278
Mooresville, NC	237
Norfolk, VA	68
Knoxville, TN	9

Partner Available:

11200 In Stock

Brand Parker

Part No. 487TC-4-RL

$6.12/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Inner Diameter	0.25 Inch
Material	Rubber	Mating Fitting Series	43
Working Pressure	4,000 psi (28 MPa)	Parker Group	Fluid Connector
Inch/Metric	Inch	Parker Division	Hose Products
Inner Diameter	0.25 Inch	Inner Diameter Inch/mm	Inch
Material	Rubber	Application	Hydraulic
Working Pressure Range	4000 to 4999 PSI (276 to 345 bar)	Hose Category	Hydraulic Industry Standard
Trade Name	GlobalCore	Mating End Fitting Series	43
Specification	ISO 18752	ISO 18752 Performance	AC
Minimum Bend Radius	2 Inch	Operating Temperature	-40°F to +257°F (-40°C to +125°C)
Series	487TC	Hose Pressure Range	High
Distinct Properties	Tough Cover Constant Pressure 4000 PSI	Working Pressure	4,000 psi (28 MPa)
