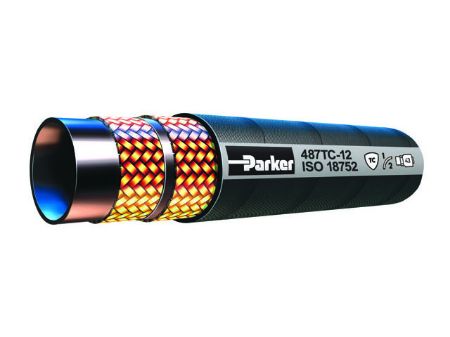

487TC Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.

Parker’s GlobalCore 487TC hose provides 4,000 psi (28 MPa) constant working pressure in all sizes. 80 times the abrasion resistance compared to standard rubber cover hose. ½ ISO 18752 minimum bend radius. Low force to flex for ease of installation. Exceeds ISO 18752 performance specification.

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Material	Inner Diameter	Mating Fitting Series	Working Pressure	Parker Group	Inch/Metric	Parker Division	Inner Diameter	Inner Diameter Inch/mm	Material	Application	Working Pressure Range	Hose Category	Trade Name	Mating End Fitting Series	Specification	ISO 18752 Performance	Minimum Bend Radius	Operating Temperature	Series	Hose Pressure Range	Distinct Properties	Working Pressure
487TC-10-RL	3775 In Stock	11083 In Stock	$11.91/foot	FT	Rubber	0.625 Inch	43	4,000 psi (28 MPa)	Fluid Connector	Inch	Hose Products	0.625 Inch	Inch	Rubber	Hydraulic	4000 to 4999 PSI (276 to 345 bar)	Hydraulic Industry Standard	GlobalCore	43	ISO 18752	AC	4 Inch	-40°F to +257°F (-40°C to +125°C)	487TC	High	Tough Cover Constant Pressure 4000 PSI	4,000 psi (28 MPa)
487TC-12-RL	4289 In Stock	14020 In Stock	$18.12/foot	FT	Rubber	0.75 Inch	43	4,000 psi (28 MPa)	Fluid Connector	Inch	Hose Products	0.75 Inch	Inch	Rubber	Hydraulic	4000 to 4999 PSI (276 to 345 bar)	Hydraulic Industry Standard	GlobalCore	43	ISO 18752	AC	4 3/4 Inch	-40°F to +257°F (-40°C to +125°C)	487TC	High	Tough Cover Constant Pressure 4000 PSI	4,000 psi (28 MPa)
487TC-16-RL	1163 In Stock	5877 In Stock	$23.97/foot	FT	Rubber	1 Inch	43	4,000 psi (28 MPa)	Fluid Connector	Inch	Hose Products	1 Inch	Inch	Rubber	Hydraulic	4000 to 4999 PSI (276 to 345 bar)	Hydraulic Industry Standard	GlobalCore	43	ISO 18752	CC	6 Inch	-40°F to +257°F (-40°C to +125°C)	487TC	High	Tough Cover Constant Pressure 4000 PSI	4,000 psi (28 MPa)
487TC-20-BX	Quote Required	50 In Stock	$60.36/foot	FT	Rubber	1.25 Inch	77	4,000 psi (28 MPa)	Fluid Connector	Inch	Hose Products	1.25 Inch	Inch	Rubber	Hydraulic	4000 to 4999 PSI (276 to 345 bar)	Hydraulic Industry Standard	GlobalCore	77	ISO 18752	CC	8 1/4 Inch	-40°F to +257°F (-40°C to +125°C)	487TC	High	Tough Cover Constant Pressure 4000 PSI	4,000 psi (28 MPa)
487TC-24-BX	Quote Required	89 In Stock	$72.54/foot	FT	Rubber	1.5 Inch	77	4,000 psi (28 MPa)	Fluid Connector	Inch	Hose Products	1.5 Inch	Inch	Rubber	Hydraulic	4000 to 4999 PSI (276 to 345 bar)	Hydraulic Industry Standard	GlobalCore	77	ISO 18752	CC	10 Inch	-40°F to +257°F (-40°C to +125°C)	487TC	High	Tough Cover Constant Pressure 4000 PSI	4,000 psi (28 MPa)
487TC-32-BX	Quote Required	105 In Stock	$107.73/foot	FT	Rubber	2 Inch	77	4,000 psi (28 MPa)	Fluid Connector	Inch	Hose Products	2 Inch	Inch	Rubber	Hydraulic	4000 to 4999 PSI (276 to 345 bar)	Hydraulic Industry Standard	GlobalCore	77	ISO 18752	CC	12 1/2 Inch	-40°F to +257°F (-40°C to +125°C)	487TC	High	Tough Cover Constant Pressure 4000 PSI	4,000 psi (28 MPa)
487TC-4-RL	2856 In Stock	21260 In Stock	$6.12/foot	FT	Rubber	0.25 Inch	43	4,000 psi (28 MPa)	Fluid Connector	Inch	Hose Products	0.25 Inch	Inch	Rubber	Hydraulic	4000 to 4999 PSI (276 to 345 bar)	Hydraulic Industry Standard	GlobalCore	43	ISO 18752	AC	2 Inch	-40°F to +257°F (-40°C to +125°C)	487TC	High	Tough Cover Constant Pressure 4000 PSI	4,000 psi (28 MPa)
487TC-6-RL	1866 In Stock	19906 In Stock	$6.67/foot	FT	Rubber	0.375 Inch	43	4,000 psi (28 MPa)	Fluid Connector	Inch	Hose Products	0.375 Inch	Inch	Rubber	Hydraulic	4000 to 4999 PSI (276 to 345 bar)	Hydraulic Industry Standard	GlobalCore	43	ISO 18752	AC	2 1/2 Inch	-40°F to +257°F (-40°C to +125°C)	487TC	High	Tough Cover Constant Pressure 4000 PSI	4,000 psi (28 MPa)
487TC-8-RL	3551 In Stock	18152 In Stock	$8.16/foot	FT	Rubber	0.5 Inch	43	4,000 psi (28 MPa)	Fluid Connector	Inch	Hose Products	0.5 Inch	Inch	Rubber	Hydraulic	4000 to 4999 PSI (276 to 345 bar)	Hydraulic Industry Standard	GlobalCore	43	ISO 18752	AC	3 1/2 Inch	-40°F to +257°F (-40°C to +125°C)	487TC	High	Tough Cover Constant Pressure 4000 PSI	4,000 psi (28 MPa)
