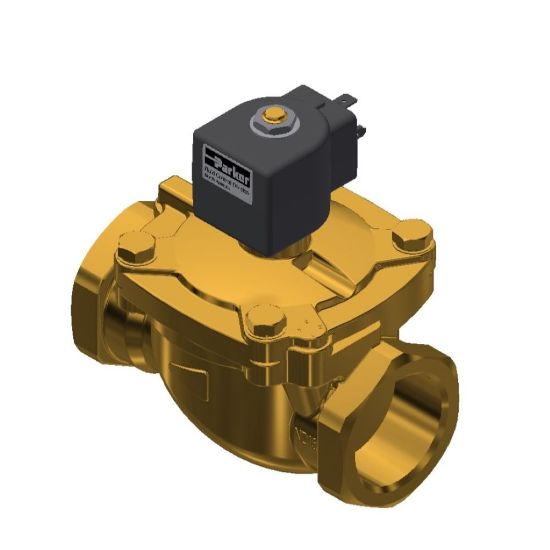

Parker 7321GBN88N00N0D100C2 - Parker 2-Way Normally Closed, 1-1/2" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 1-1/2" NPT Solenoid Valves provide operating pressures up to 230 PSI and flow factors up to 29 CV's. They offer brass bodies, multi-mount options and Class F or H or NEMA 4X, 7 or 9 coils for all flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7321GBN88N00N0D100C2

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Input Voltage	24.0	Body Material	Brass
Division	Fluid Control Division	Port Size	1-1/2
Media	General Purpose for Air	Function	Normally Closed (NC)
Coil Type	DIN Form A, Class F	Valve Type	2-Way
Seal Material	NBR	Orifice 2 Size	n/a
Number of Ports	2	Flow Coefficient 2	n/a
Coil Specifications Met	Class F	Minimum Fluid Temperature	0
Minimum Pressure Differential	5	Maximum Pressure Differential	200
Power Consumption	10	Maximum Fluid Temperature	185
Actuation Type	Manual	Product Series	7000 Series
Orifice 1 Size	1-9/16	Flow Coefficient 1	29
Coil Type	DIN Form A, Class F	Voltage (V)	24 VDC
Maximum Pressure Differential (psi)	200 psi (DC)	Power (Watts)	10 Watt (DC)
Flow Factor 1 (Cv)	29	Orifice 1 Size (inch)	1-9/16

Product resources

Literature and Reference Materials

Tube Seal (PDF)
