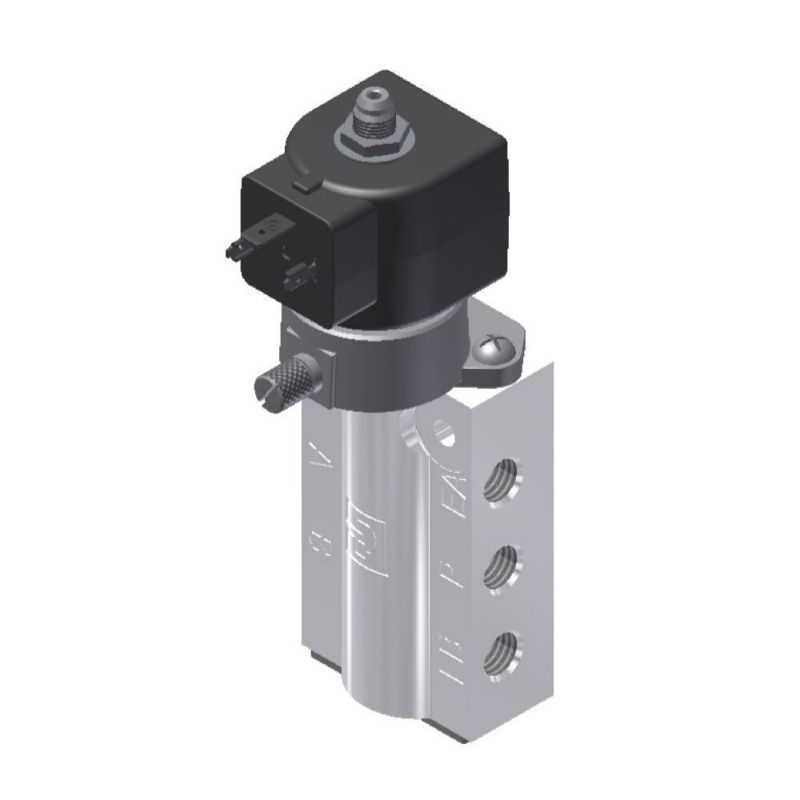

Parker 73419AN2NN00N0D100C2 - 9 Family - 4 Way (5/2) Standard-Duty VAP Valves

These durable, yet economical aluminum 4-way (5/2) valves are used to actuate double acting cylinders and pilot larger process control valves in diverse industries.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 73419AN2NN00N0D100C2

$324.65

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid Control Division
Port Type	NPT	Seal Material	NBR
Coil Type	DIN 43650A / ISO 4400	Input Voltage	24.0
Actuation Type	Internally Piloted	Insulation Class	Class F
Specifications Met	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	Ingress Protection Rating	NEMA 4,4X
Maximum Pressure Differential	150.0	Maximum Ambient Temperature	167.0
Body Material	Aluminum	Port Size	1/4
Power Consumption	10.0	Media	Air, Inert Gas
Function	2 Position, Single Solenoid	Valve Type	4 Way (5/2)
Orifice Size	1/4	Minimum Pressure Differential	30.0
Installation	IOM 7403	Main Flow Coefficient	1.0
Override Functionality	N/A	Maximum Fluid Temperature	167.0
Preventive Maintenance Kit	7K901
