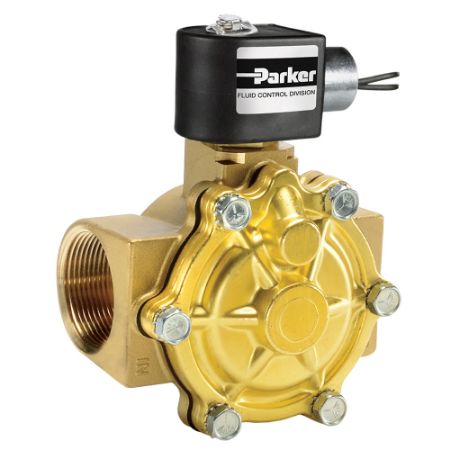

Parker 2-Way Normally Closed, 1-1/2" NPT General Purpose Solenoid Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's 2-Way Normally Closed 1-1/2" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids and gases. These valves are available in brass construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.

Markets:

• Commercial Equipment

• Food & Beverage

• Industrial Automation

• Oil & Gas

• Process Control

• Transportation

Features/ Benefits:

• High Quality Standards of Skinner® and Gold Ring™ Brand

• Modular Design

• Long Life

• Tight Shutoff

Applications:

• Instrumentation Equipment

• Analyzers and Diagnostic Equipment

• Medical and Dental Equipment

• Portable Welding Equipment

• Spraying Equipment

• Lubrication Equipment

• Beverage Dispensing & Vending machines

• Oil Burners

• Humidification and Misting Equipment

• Mobile Fuel Shut Off

• Textile and Dry Cleaning Equipment

• Commercial Dishwashers

• Commercial Laundry and Dryers

• Air Horns

• Pneumatic Fan Clutch

• Irrigation Equipment

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	Seal Material	Power Consumption	Actuation Type	Maximum Pressure Differential	Port Type	Maximum Fluid Temperature	Division	Valve Type	Orifice 2 Size	Product Series	Minimum Fluid Temperature	Flow Coefficient 2	Function	Port Size	Coil Specifications Met	Media	Input Voltage	Minimum Pressure Differential	Coil Type	Number of Ports	Flow Coefficient 1	Orifice 1 Size	Body Material	Coil Type	Voltage (V)	Maximum Pressure Differential (psi)	Flow Factor 1 (Cv)	Orifice 1 Size (inch)	Power (Watts)
73218BN87N00N0C111P3	Quote Required	Quote Required	$844.34/each	NBR	10 W	Manual	125 psi	NPT	185 °F	Fluid Control Division	2-Way	n/a	7000 Series	0 °F	n/a	Normally Closed (NC)	1-1/2 inch	NEMA 4X	General Purpose for Air	110/50-120/60	5 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	2	22.5 Cv	1-1/4 inch	Brass	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	110/50-120/60	125 psi (AC)	22.5	1-1/4	10 Watt (AC)
7321GBN88N00N0C111P3	Quote Required	2 Limited Stock	$844.13/each	NBR	10 W	Mechanical	230 psi	NPT	185 °F	Fluid Control Division	2-Way	n/a	7000 Series	0 °F	n/a	Normally Closed (NC)	1-1/2 inch	NEMA 4X	General Purpose for Air	110/50-120/60	5 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	2	29 Cv	1-9/16 inch	Brass	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	110/50-120/60	230 psi (AC)	29	1-9/16	10 Watt (AC)
7321GBN88N00N0D100C2	Quote Required	Quote Required	TBD	NBR	10	Manual	200	NPT	185	Fluid Control Division	2-Way	n/a	7000 Series	0	n/a	Normally Closed (NC)	1-1/2	Class F	General Purpose for Air	24.0	5	DIN Form A, Class F	2	29	1-9/16	Brass	DIN Form A, Class F	24 VDC	200 psi (DC)	29	1-9/16	10 Watt (DC)
7321GBN88N00N0D100P3	Quote Required	Quote Required	$794.98/each	NBR	10 W	Manual	230 psi	NPT	185 °F	Fluid Control Division	2-Way	n/a	7000 Series	0 °F	n/a	Normally Closed (NC)	1-1/2 inch	Class F	Liquids and Gases	110/50-120/60	5 psi	DIN Form A, Class F	2	29 Cv	1-9/16 inch	Brass	DIN Form A, Class F	110/50-120/60	230 psi (AC)	29	1-9/16	10 Watt (AC)
7321GBN88N00N0H111C2	Quote Required	Quote Required	$879.29/each	NBR	10 W	Manual	200 psi	NPT	185 °F	Fluid Control Division	2-Way	n/a	7000 Series	0 °F	n/a	Normally Closed (NC)	1-1/2 inch	NEMA 9	Liquids and Gases	24.0 VDC	5 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9	2	29 Cv	1-9/16 inch	Brass	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9	24 VDC	200 psi (DC)	29	1-9/16	10 Watt (DC)
7321GBN88N00N0H322C2	Quote Required	Quote Required	TBD	NBR	22	Manual	230	NPT	185	Fluid Control Division	2-Way	n/a	7000 Series	0	n/a	Normally Closed (NC)	1-1/2	NEMA 9	General Purpose for Air	24.0	5	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	2	29	1-9/16	Brass	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	24 VDC	230 psi (DC)	29	1-9/16	22 Watt (DC)
